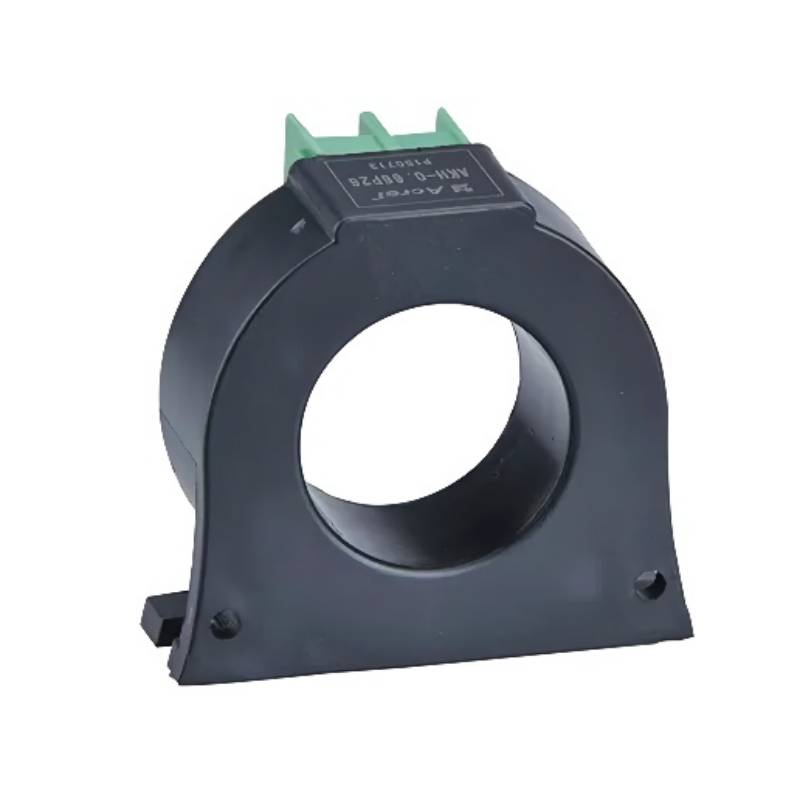

AKH-0.66P26 Current Transformer
AKH-0.66P26 Current Transformer
● maximum measurable current: 60A
● transformation change ratio: 2000:1
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
INFORMATION

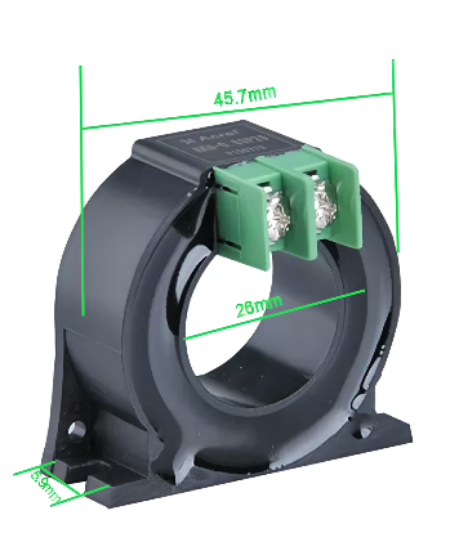

01 Dimension
02 Product Selection
03 Network
04 Application
PARAMETERS
|
Input Current
|
0.5mA-50A
|
|||
|
Output Current
|
0.025-25mA
|
|||
|
Phase Shift
|
10'
|
|||
|
Accuracy
|
0.5%
|
|||
|
Operating Temperature
|
-35~+70 ℃
|
|||
|
Storage Temperature
|
-40~+75 ℃
|
|||
|
Secondary Resistance Range
|
95~120Ω
|
|||
|
Load Resistance
|
<200Ω
|
|||
|
Isolation Voltage
|
500Vac
|
|||
|
Linearity
|
0.5%
|
|||
