AIM-T500 Industrial Insulation Monitoring Device
AIM-T500 Industrial Insulation Monitoring Device

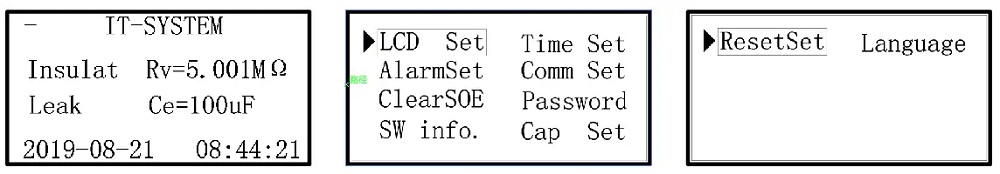

● LCD display with backlit
● Unearthed AC,DC main circuits
● IT systems including high leakage capacitances
● Coupled IT systems

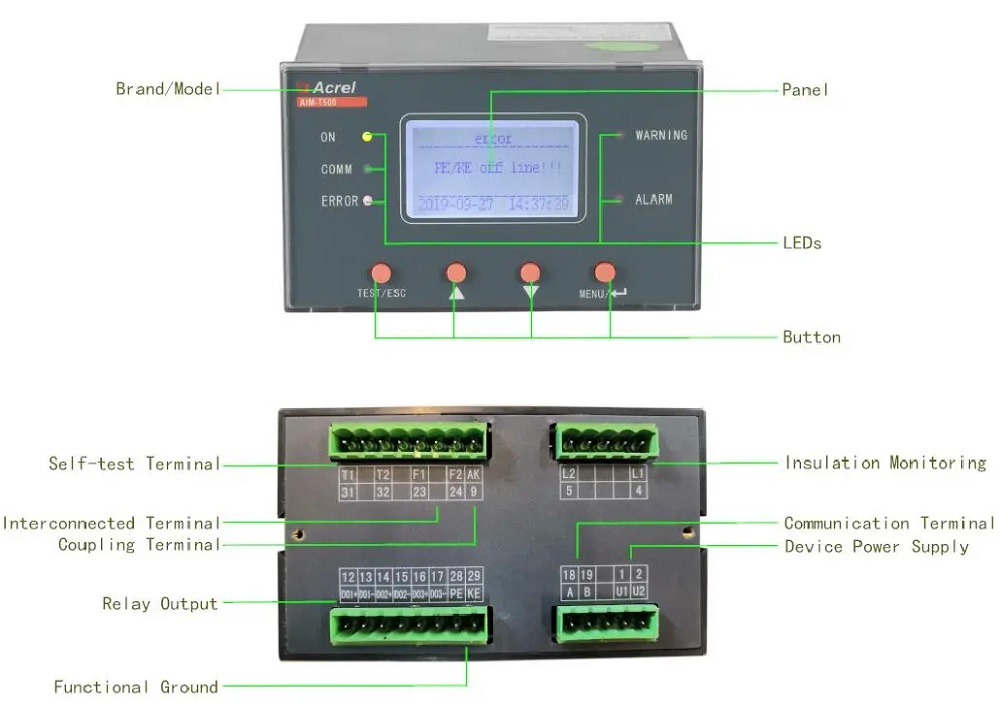

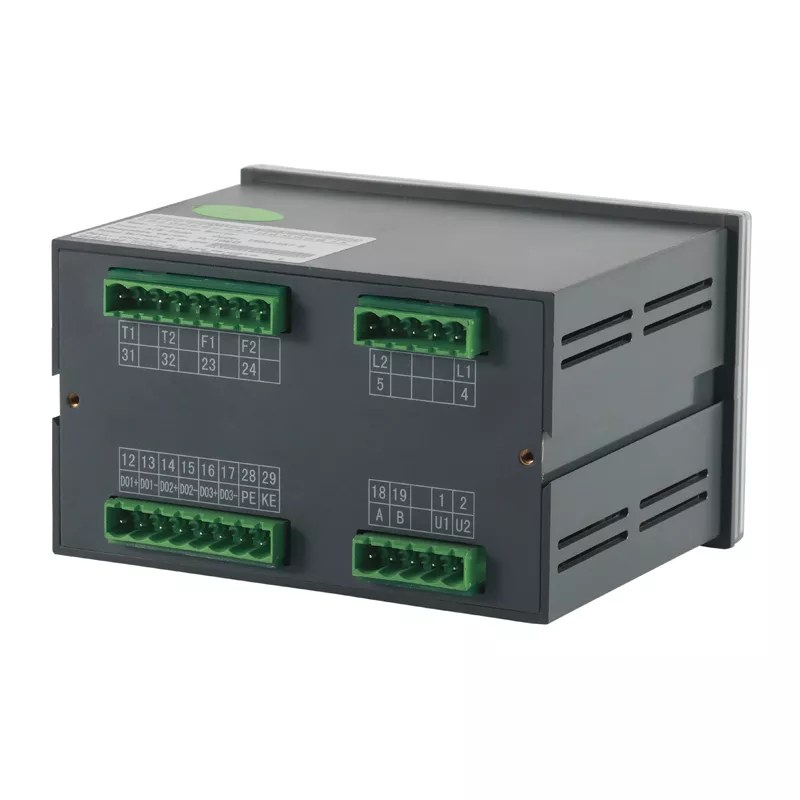

02 Wiring
|
Auxiliary Power Supply |
Voltage |
AC85-265V |
||
|
DC120-370V |
||||
|
Frequency |
40-60Hz |
|||
|
Power Consumption |
<8W |
|||
|
Voltage Range |
System Voltage |
AC/DC 0~480V |
||
|
Output |
Relay output |
Capacity |
Fault Warning |
AC 250V/3A DC 30V/3A |
|
Fault alarm |
AC 250V/3A DC 30V/3A |
|||
|
Environment |
Operating temperature |
-15~+55℃ |
||
|
Storage temperature |
-20~+70℃ |
|||
|
Humidity |
95%RH, without condensation |
|||
|
Altitude |
≤2500m |
|||
|
Insulation monitoring |
Measuring range |
1k-10MΩ |
||
|
Precision |
1-10kΩ |
10kΩ |
||
|
10k-5MΩ |
±10% |
|||
|
Early-warning range |
1k~10MΩ |
|||
|
Alarm range |
10k~Warning value |
|||
|
Response time(Ce=1uF) |
<5s |
|||
|
Allowable system leakage capacitance |
<500uF |
|||
|
Communication |
Interface |
RS485 |
||
|
Protocol |
MODBUS-RTU |
|||
|
Internal parameter |
Measuring voltage |
<50V |
||
|
Measuring current |
<270uA |
|||
|
EMC |
IEC61326-2-4 |
|||
|
Rated impulse voltage /pollution level |
8kV/Ⅲ |
|||
|
Internal DCresistance |
≥180kΩ |
|||
