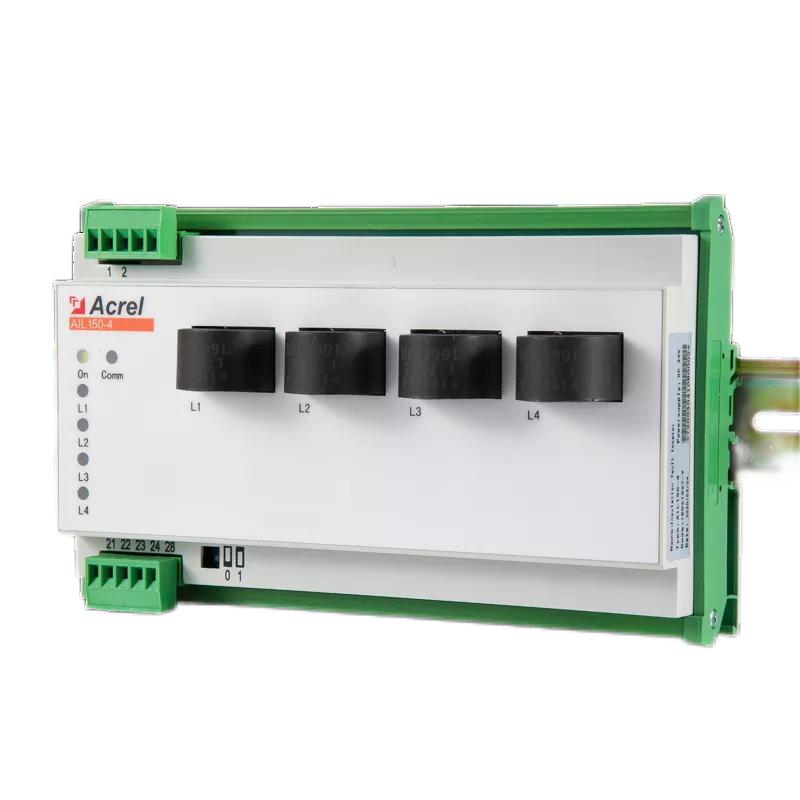

AIL150-4 4 Channels Insulation Fault Locator
AIL150-4 4 Channels Insulation Fault Locator
● Insulation fault location in AC IT systems
● AIL150-4: 4 measuring channels
● LED indicators: On, Comm
● CAN bus
● Auxiliary power supply: DC24V
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
INFORMATION

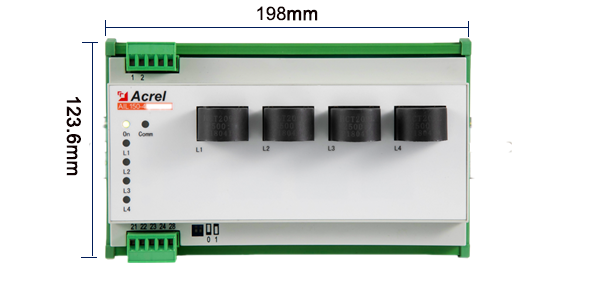

01 Dimension

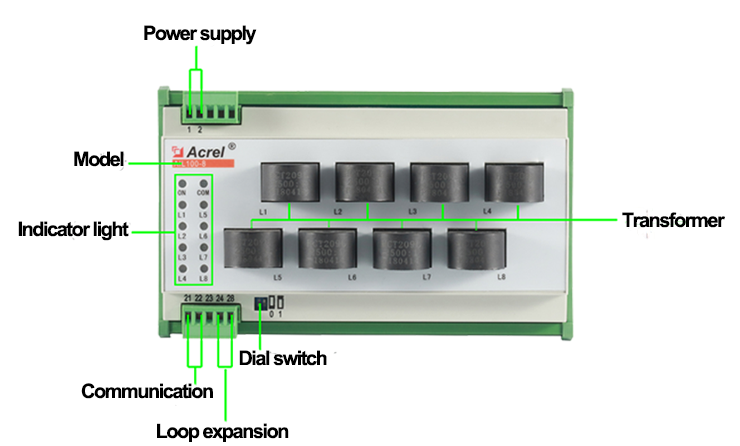

02 Wiring
03 Network
04 Application
PARAMETERS
|
Parameter
|
Value
|
||
|
AIL150-4
|
AIL150-8
|
||
|
Auxiliary power
|
Voltage
|
DC24V(±25%)
|
|
|
The maximum power consumption
|
≤2VA
|
||
|
Monitored system
|
Rated voltage
|
0-242VDC
|
|
|
Frequency
|
45-60HZ
|
||
|
Location signals
|
Location voltage
|
＜25V
|
|
|
Location current
|
＜1mA
|
||
|
Fault location
|
the maximum number of loops
|
4
|
8
|
|
Response time
|
＜2S
|
||
|
Communication
|
Bus
|
CAN
|
|
|
Protocol
|
Custom protocol
|
||
DOWNLOAD
