AID150 Alarm And Display Device
AID150 Alarm And Display Device
● Remote monitoring
● LED indicators：On, Insulation, Overload, Overtemp
● Mute button
● Test button
● Auxiliary power supply: DC24V
● RS485(MODBUS-RTU)
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
INFORMATION

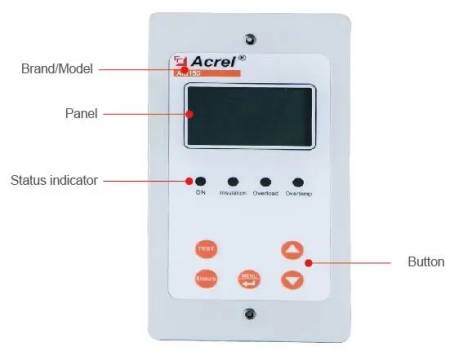

01 Front Panel

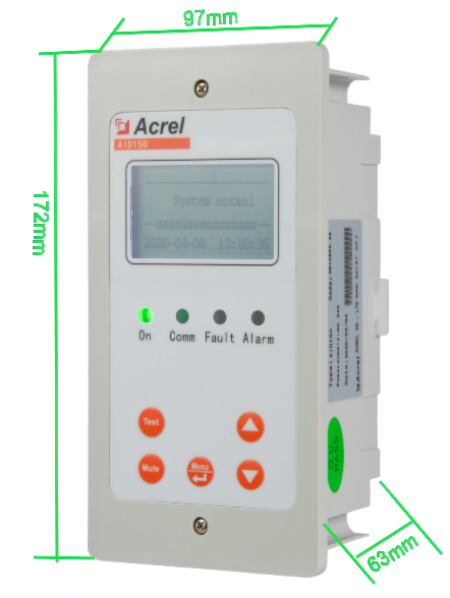

02 Dimension

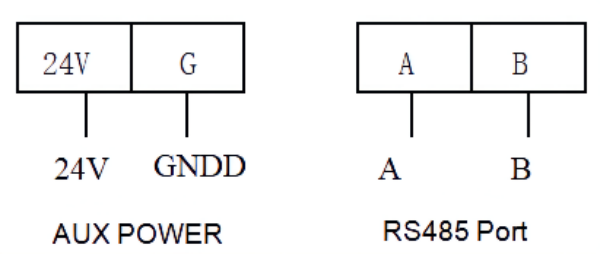

03 Wiring
04 Network
PARAMETERS
|
Parameters/Model
|
AID10
|
AID120
|
AID150
|
|
|
Auxiliary power
|
Voltage
|
DC 24V
|
||
|
Power consumption
|
< 0.6W
|
|||
|
Insulation resistance measurement range
|
—
|
0—999kΩ
|
— | |
|
Insulation alarm value range
|
50—999kΩ
|
|||
|
Transformer load rate display
|
—
|
Percentage display
|
— | |
|
Load current alarm settings
|
14A、18A、22A、28A、35A、45A
|
|||
|
Temperature alarm value range
|
0~+200℃
|
|||
|
Alarm
|
Audible and visible alarm
|
|||
|
Alarm Type
|
Insulation fault, overload, over-temperature, equipment failure
|
|||
|
Communication
|
RS485 interface, MODBUS-RTU protocol
|
|||
|
Display method
|
— |
LED Display
|
128*32 LCD
|
|
