BM-TR/IS Thermal Resistance Isolator BM Analog Signal Isolator
BM-TR/IS Thermal Resistance Isolator BM Analog Signal Isolator
● Input: PT100
● Output: 4-20mA
● Powered by output
● 35mm Din rail installation
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
INFORMATION
01 General
① PT100 temperature signal input
② Using magnetic isolation technology
③ Response time <400ms
④ TS35 rail installation
⑤ Plug-in terminal
⑥ Temperature drift coefficient: ≤200ppm/℃ at 0.5 level
② Using magnetic isolation technology
③ Response time <400ms
④ TS35 rail installation
⑤ Plug-in terminal
⑥ Temperature drift coefficient: ≤200ppm/℃ at 0.5 level
02 Dimension
03 Structure

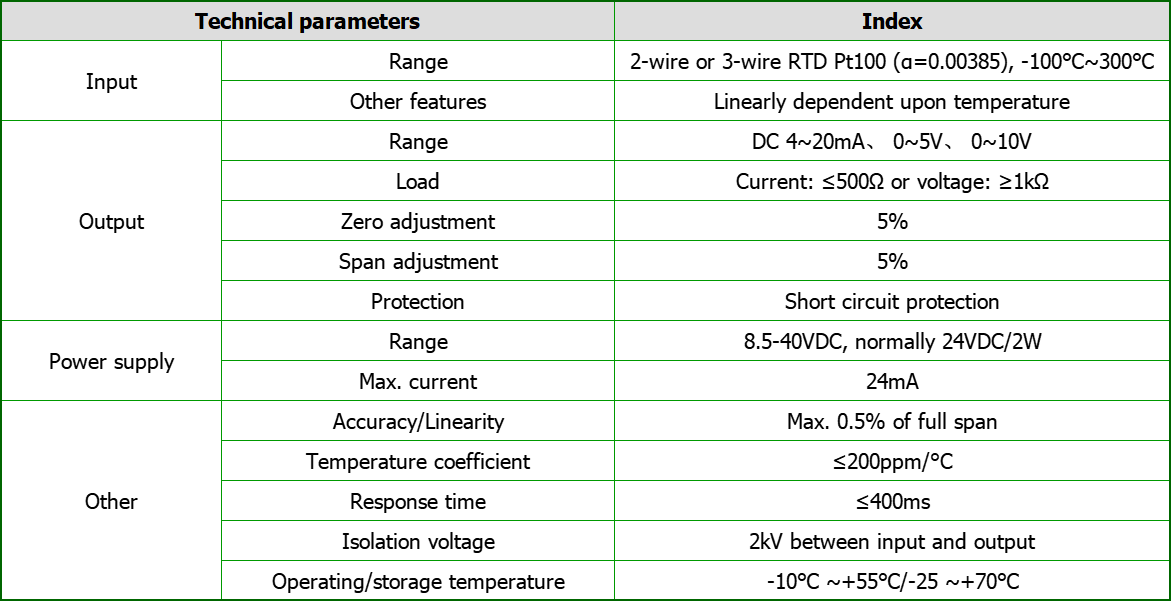

PARAMETERS
DOWNLOAD
