ATE400 Wireless Temperature Sensor
ATE400 Wireless Temperature Sensor
● Wireless transmit,470MHz;
● Wireless transmission distance, 150 meters in open area;
● Alloy chip, for CT-powered;
● Widely temperature measuring range, -50℃~+125℃.

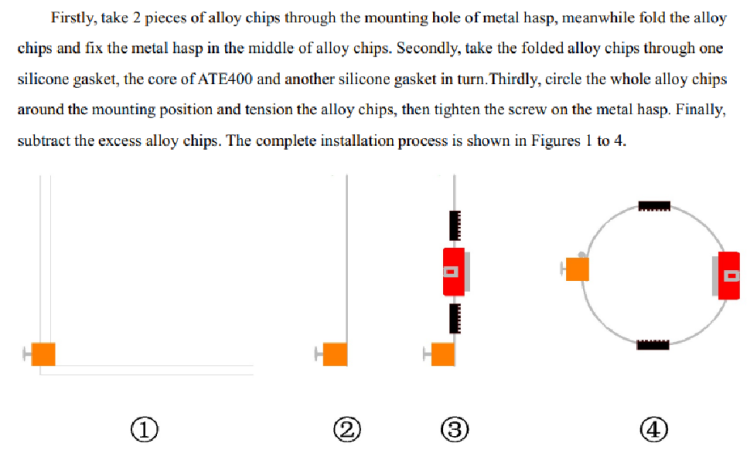

02 Installation

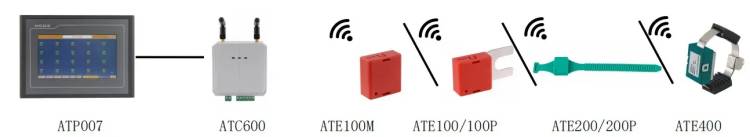

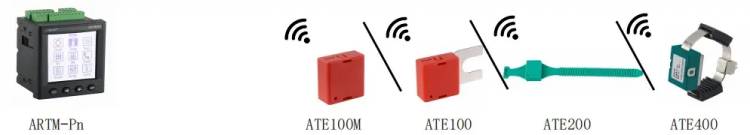

04 Typical Connection
|
Temperature sensor |
ATE400 |
|
|
Wireless frequency |
470MHz / 433Mhz |
|
|
Communication distance |
150m in open area |
|
|
Sampling frequency |
15s |
|
|
Transmitting frequency |
15s |
|
|
Power source |
CT-powered, starting current≥5A |
|
|

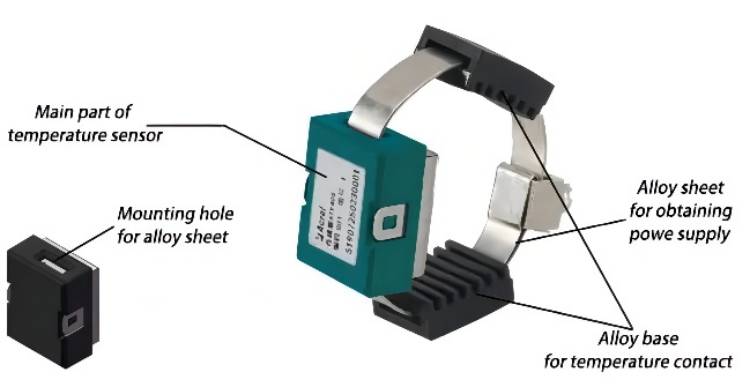

Installation |
Alloy chip fixing |
|
|
Sensor probe |
Alloy bottom |
|
|
Range of temperature |
-50~+125℃ |
|
|
Precision |
±1℃ |
|
|

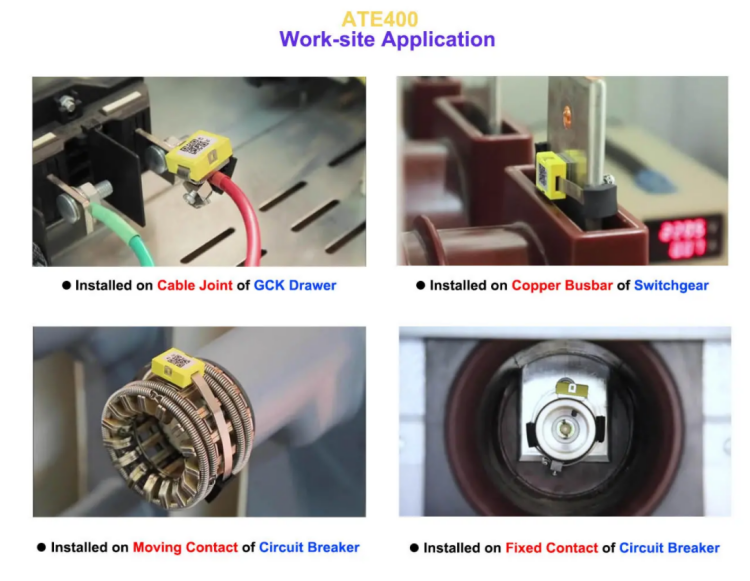

Application |
Joints in high or low voltage switchgears |
|
|
Environment |
Temperature |
Operating: -40~+125℃; Storage: -25~70℃ |
|
Humidity |
≤95% (No condensation) |
|
|
Altitude |
＜2000m |
|
|
Atmospheric pressure |
86kPa~106kPa |
|
