ATE Series Wireless Temperature Sensor
ATE Series Wireless Temperature Sensor
02 Installation
04 Typical Connection
|
Wireless temperature measurement |
Item |
Value |
|
Wireless frequency |
470MHz |
|
|
Communication distance |
150m in open area |
|
|
Sampling frequency |
ATE100, ATE100M, ATE200, ATE100P, ATE200P:25s ATE400:15s |
|
|
Transmission frequency |
ATE100, ATE100M, ATE200, ATE100P, ATE200P:5min ATE400：15s |
|
|
Power source |
CT-powered, starting current>5A |
|
|
Installation |
Alloy chip fixing |
|
|
Range of temperature |
-50AC~125°C |
|
|
Precision |
ATE100, ATE100M, ATE200, ATE400: 士 TC ATE100P,ATE200P: 土0.5°C |
|
|
Application |

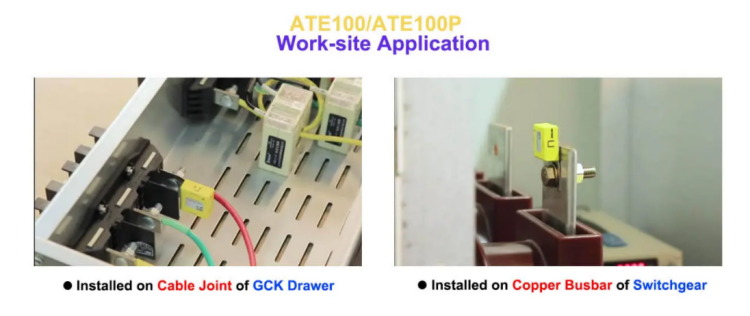

Joints in high or low voltage switchgears |
|
|
Service life |
^5 years |
|
|
Environmental requirement |
Operating temperature |
-50"C~125"C |
|
Relative humidity |
W95% |
|
|
Atmospheric pressure |
86kPa~106kPa |
