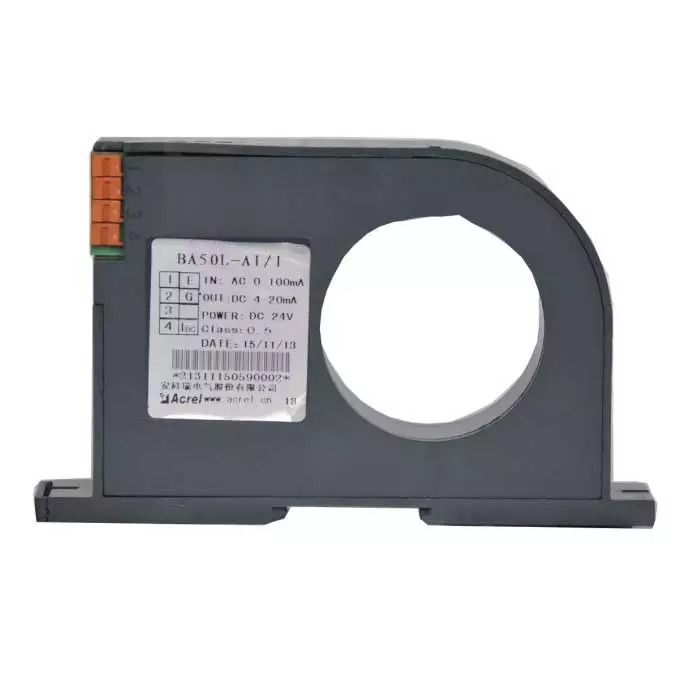

BA50L-AI/I AC Leakage Current Sensor
BA50L-AI/I AC Leakage Current Sensor
● Input: 0-1A leakage current
● Output: DC 4-20mA or DC 0-5V
● Measurement of leakage current
● Overload: 1.2 times of rated value
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
INFORMATION

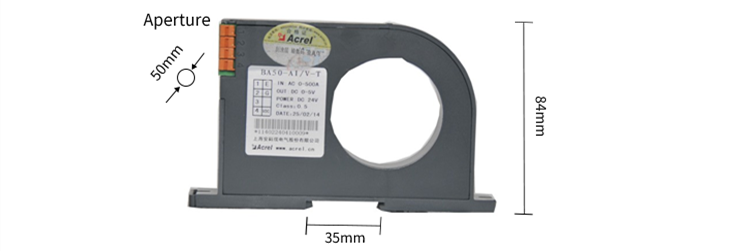

01 Dimension
02 Installation

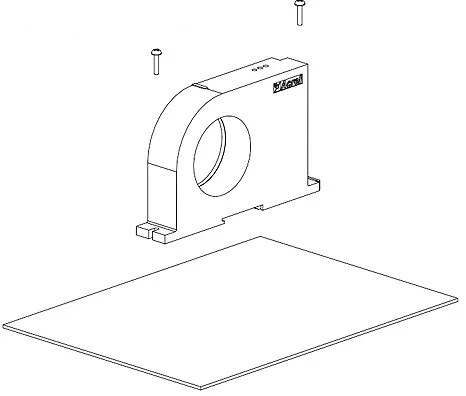

Screw fixed installation
On the bottom panel of the cabinet, choose a suitable place to open
two threaded holes corresponding to the position of the fixed hole of
the installed sensor; After placing the sensor, install the positioning
screw
two threaded holes corresponding to the position of the fixed hole of
the installed sensor; After placing the sensor, install the positioning
screw

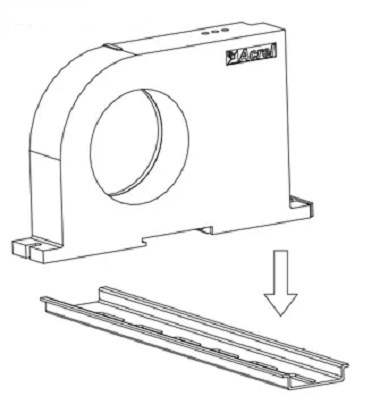

Din Rail installation
Choose a suitable place to install the standard DIN35mm rail,
and install the BA sensor on the rail

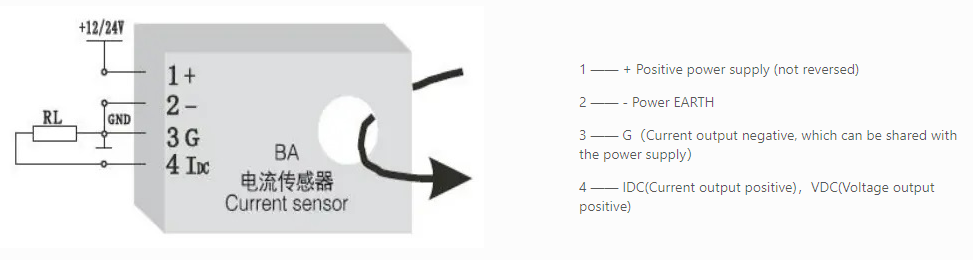

03 Wiring
PARAMETERS
