BA05-AI/I BA05-AI/V AC 0-10A Current Transducer
BA05-AI/I BA05-AI/V AC 0-10A Current Transducer
● Aperture: 5mm
● Input: AC0-(0.5-10)A
● Analog Output: DC 0-5V/1-5V/0-20mA/4-20mA
● Overload: 1.2 times of rated value
● Power supply: DC12V/DC24V
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
INFORMATION

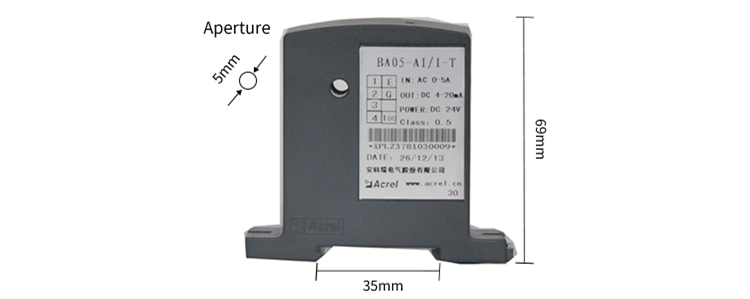

01 Dimension
02 Installation
Screw fixed installation
On the bottom panel of the cabinet, choose a suitable place to open
two threaded holes corresponding to the position of the fixed hole of
the installed sensor; After placing the sensor, install the positioning
screw
two threaded holes corresponding to the position of the fixed hole of
the installed sensor; After placing the sensor, install the positioning
screw
Din Rail installation
Choose a suitable place to install the standard DIN35mm rail,
and install the BA sensor on the rail
03 Wiring
PARAMETERS
DOWNLOAD
