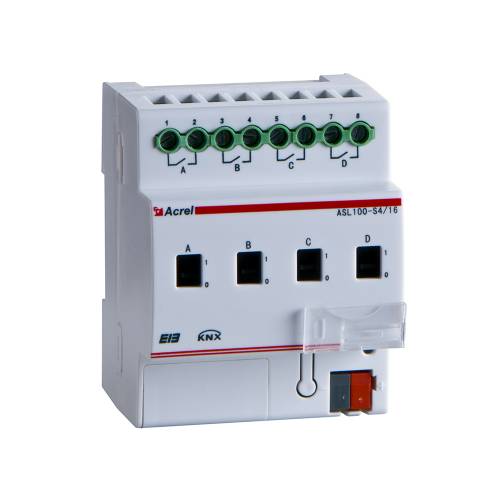

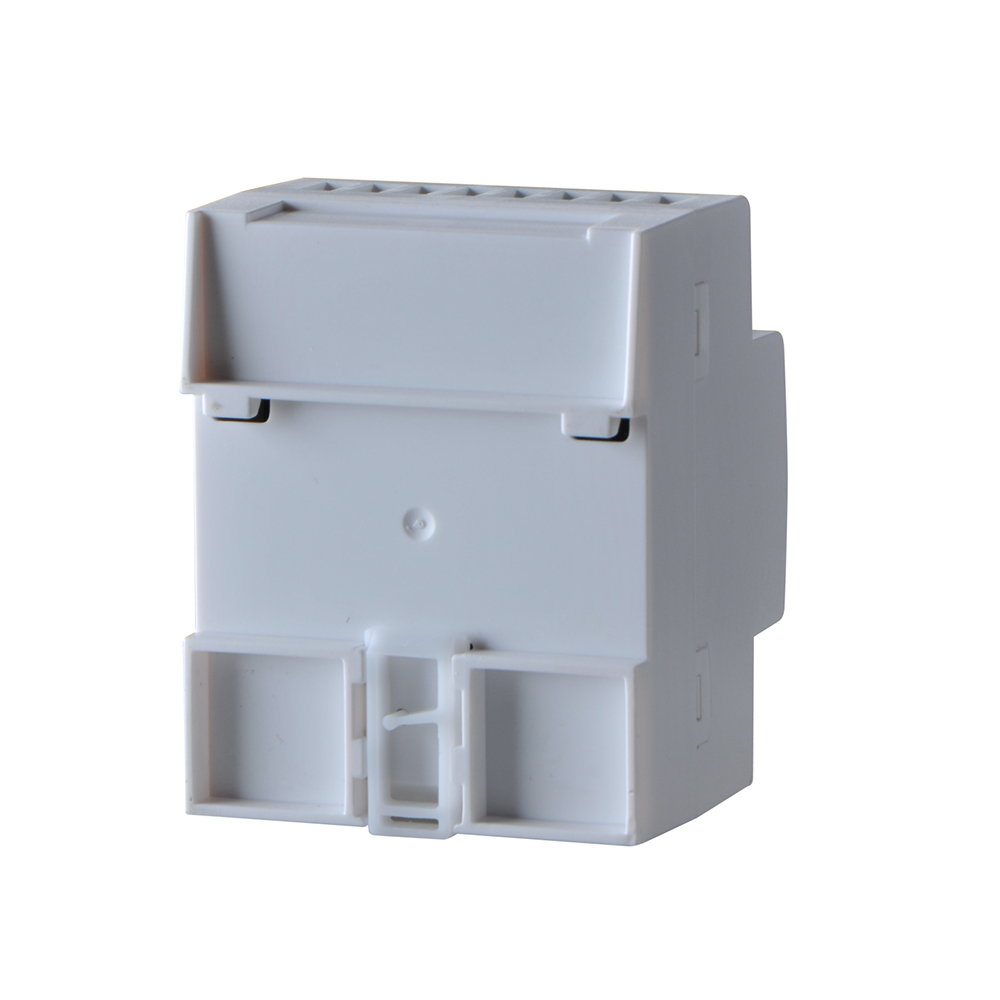

KNX Smart Lighting Switch Driver ASL100-S4/16
KNX Smart Lighting Switch Driver ASL100-S4/16
● RS485 (MODBUS -RTU)
● LED Indicator
● Output Current: 640mA
● Output Voltage: 30V
2. Time function, including stair light, flash and delay functions
3. Preset function
4. Scene control
5. Logic function
6. Threshold function
7. Heater control function

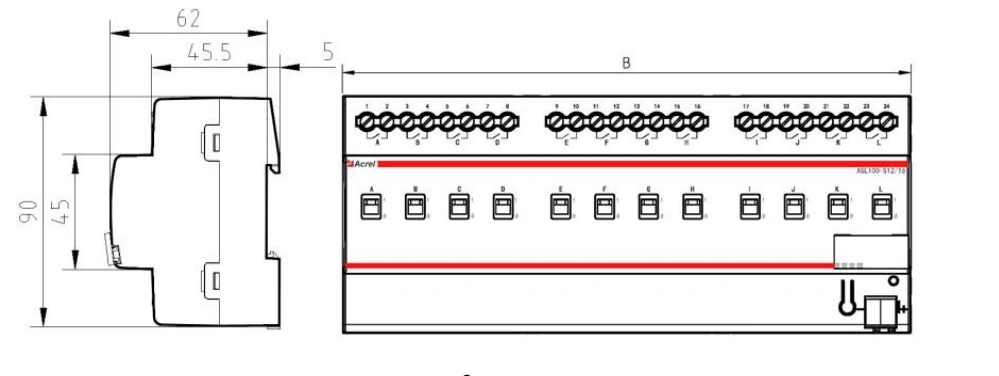

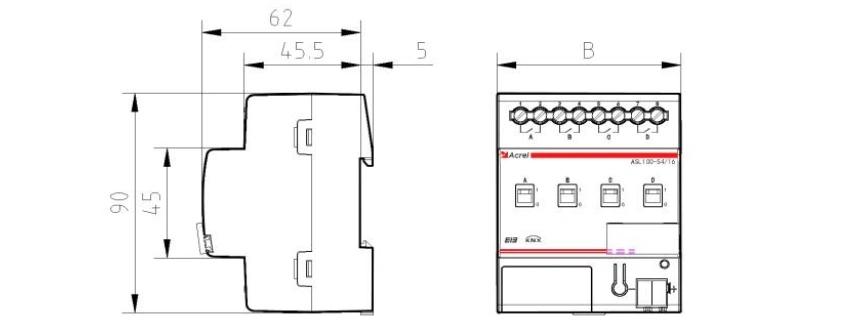

02 Dimensions

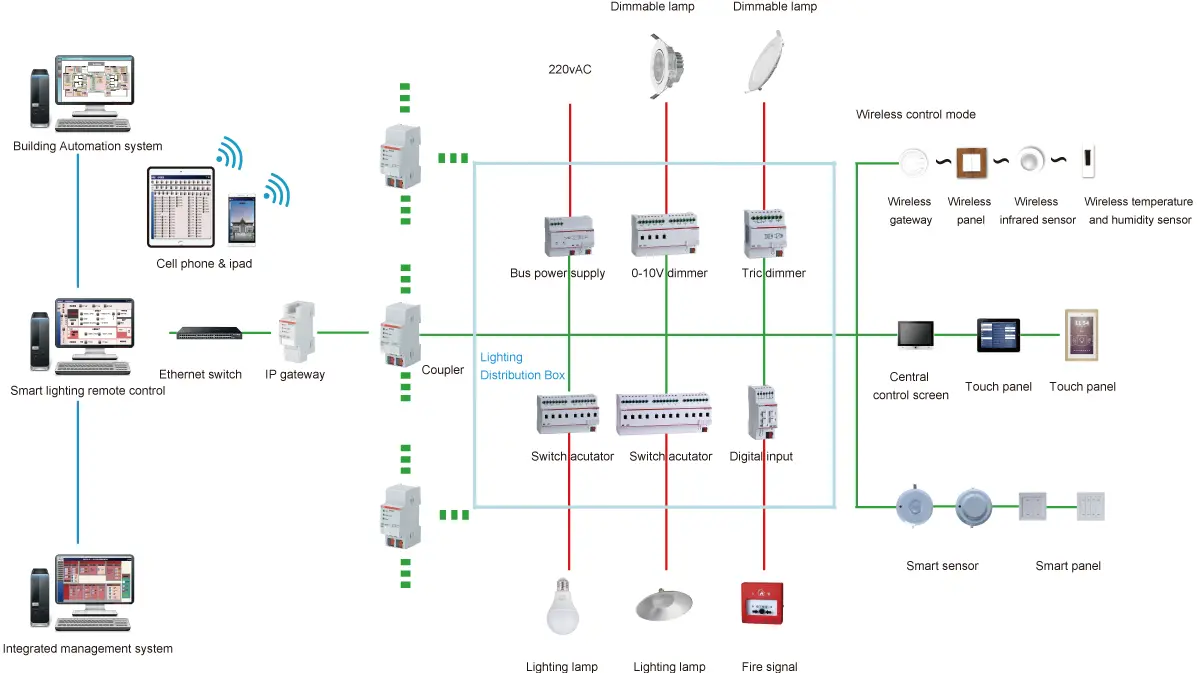

03 Network
04 Application
|
Power supply feature |
KNX bus feeder |
DC21…30V |
|
Power supply current |
<12mA |
|
|
Power consumption |
<360mW |
|
|
Load current |
<16A |
|
|
External connection |
KNX-TP1 |
Use twisted-pair cable conforming to KNX standard |
|
Wiring terminal at load end |
Terminating with 0.5nm～0.6nm torque |
|
|
Operation and display |
Programming key and |
LED indicator is in red when waiting for programming and |
|
Temperature range |
Operating temperature |
-5℃～+45℃ |
|
Storage temperature |
-25℃～+55℃ |
|
|
Transport temperature |
-30℃～+70℃ |
|
|
Dimension (mm) |
ASL100-S4/16 |
72x90x62 |
|
ASL100-S8/16 |
144x90x62 |
|
|
ASL100-S12/16 |
216x90x62 |
|
|
Environmental |
Maximum air humidity |
95% |
|
Installation |
Standard 35mm track |
Installation |
