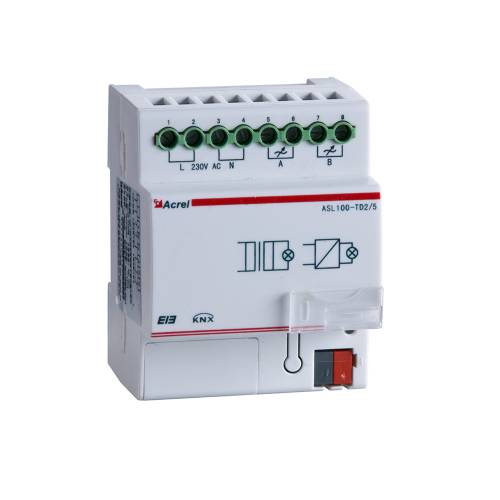

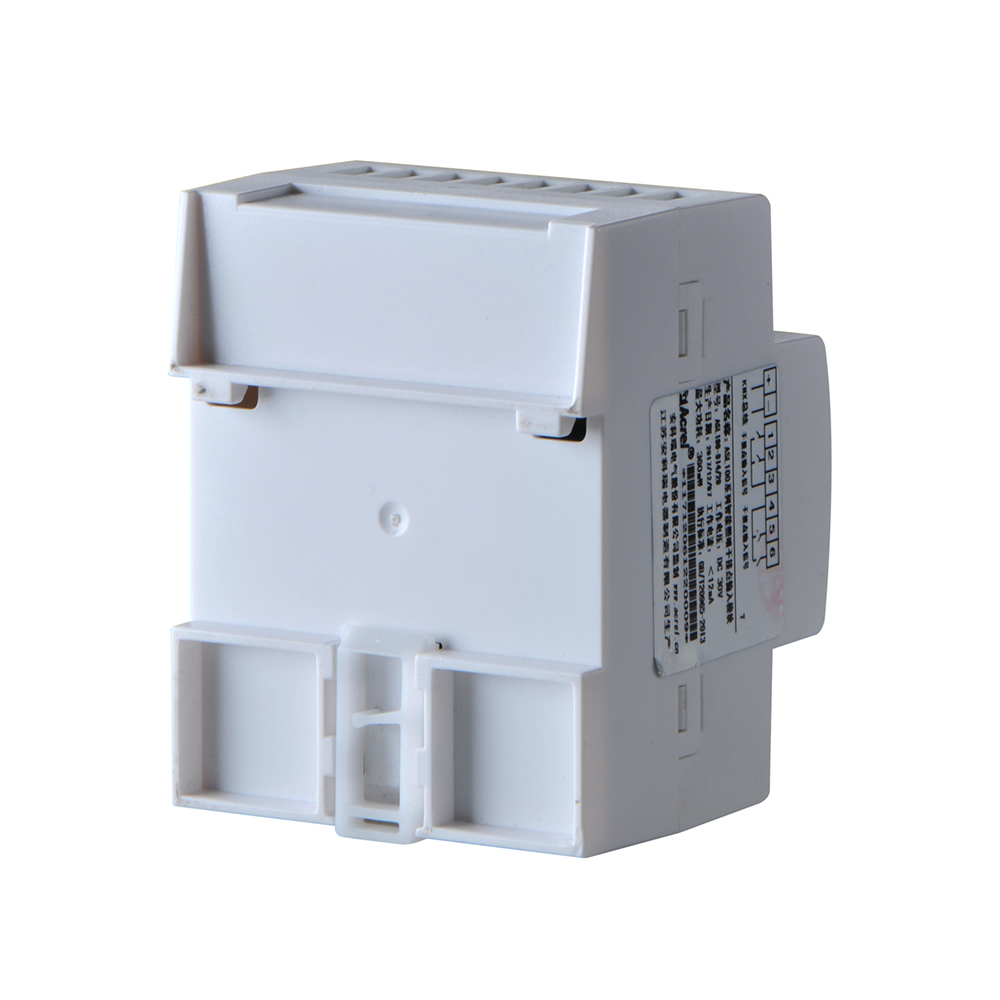

KNX Smart Lighting Silicon Controlled Dimming Driver ASL100-TD2/5
KNX Smart Lighting Silicon Controlled Dimming Driver ASL100-TD2/5
● TD : Silicon controlled dimming driver
● Multi loops support
● LED Indicator
● Maximum rated current: 5A
● KNX bus feeder：DC21～30V
2. Preset function
3. Scene control
03 Network
04 Application
|
Power supply feature |
KNX bus feeder |
DC21～30V |
|
Power supply current |
<12mA |
|
|
Power consumption |
<360mW |
|
|
Load current |
Max 5A |
|
|
External connection |
KNX-TP1 |
Use twisted-pair cable conforming to KNX standard |
|
Wiring terminal at load |
Terminating with 0.5nm～0.6nm torque |
|
|
Operation and display |
Programming key and |
LED indicator is in red when waiting for programming |
|
Temperature range |
Operating temperature |
-5℃～+45℃ |
|
Storage temperature |
-25℃～+55℃ |
|
|
Transport temperature |
-30℃～+70℃ |
|
|
Environmental |
Maximum air humidity |
95% |
|

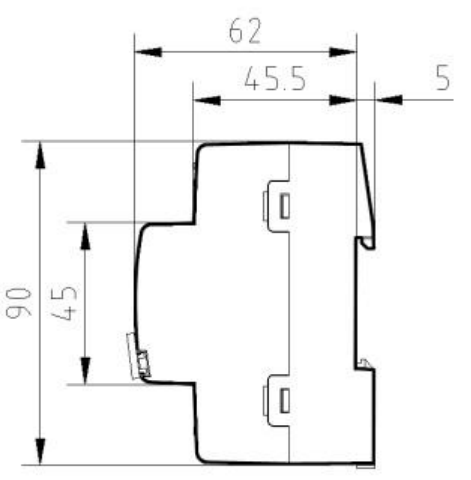

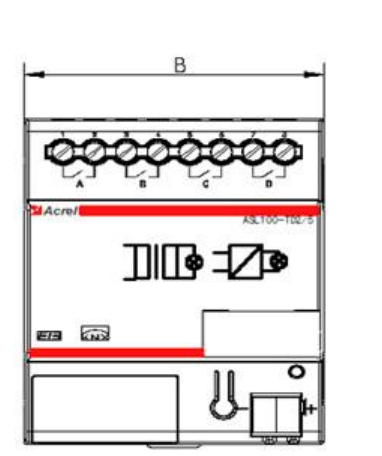

Dimension (mm) |
72x90x62 |
|
|
Installation |
Standard 35mm track installation |
|
