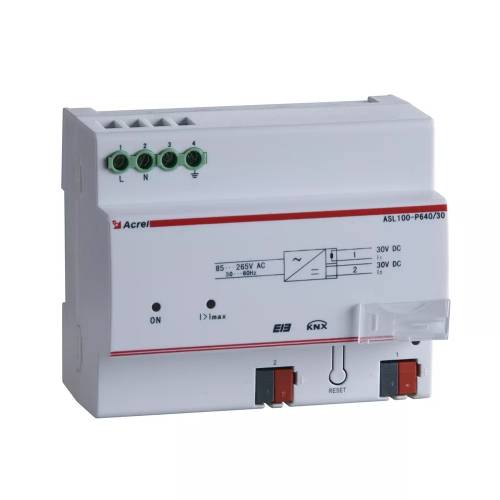

KNX Smart Lighting Power Supply ASL100-P640/30
KNX Smart Lighting Power Supply ASL100-P640/30
● RS485 (MODBUS -RTU)
● LED Indicator
● Output Current: 640mA
● Output Voltage: 30V
2. Power module can power on 64 control modules
3. Provide voltage for the bus, Couple the bus signal and monitor the voltage of KNX/EIB system
4. External power module, such as IP module and touch screen and so on.

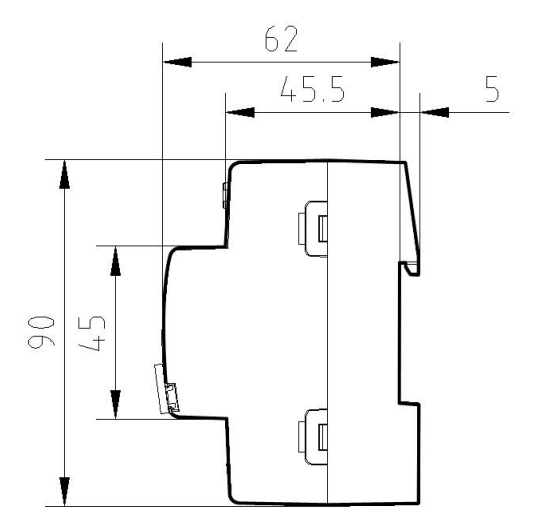

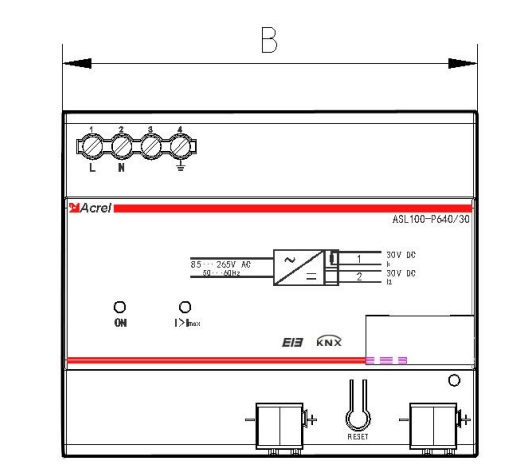

02 Dimensions
03 Network
04 Application
|
Power input |
Input voltage |
85—265VAC 50/60Hz |
|
Power consumption |
<5W |
|
|
Efficiency |
≥75% |
|
|
Power output |
Bus power supply |
30V DC Built-in choking coil output |
|
Auxiliary power supply |
30V DC No choking coil output |
|
|
Output current |
Bus current+auxiliary current≤640mA |
|
|
External connection |
KNX-TP1 |
Use twisted-pair cable conforming to KNX standard |
|
Wiring terminal at load end |
Terminating with 0.5nm～0.6nm torque |
|
|
Operation and display interface |
Programming key and relevant indicator |
LED indicator is in red when waiting for programming and is in green during and after programming |
|
Temperature range |
Operating temperature |
-5℃～+45℃ |
|
Storage temperature |
-25℃～+55℃ |
|
|
Transport temperature |
-30℃～+70℃ |
|
|
Environmental |
Maximum air humidity |
95% |
|
Dimension (mm) |
108x90x69mm |
|
|
Installation |
Standard 35mm track installation |
|
