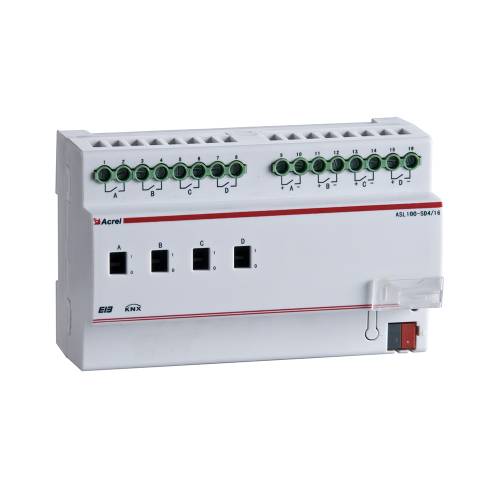

KNX Smart Lighting Dimming Driver ASL100-SD4/16
KNX Smart Lighting Dimming Driver ASL100-SD4/16
● SD: 0-10v diming driver
● 2 loops and 4 loops
● Maximum rated current is 16A
● KNX bus feeder DC21～30V
2. Dimming function: relative dimming and value dimming function
3. Preset function
4. Scene control
03 Network
04 Application
|
Power supply feature |
KNX bus feeder |
DC21～30V |
|
Power supply current |
<12mA |
|
|
Power consumption |
<360mW |
|
|
Load current |
Max 16A |
|
|
External connection |
KNX-TP1 |
Use twisted-pair cable conforming to KNX standard |
|
Wiring terminal at load |
Terminating with 0.5nm～0.6nm torque |
|
|
Operation and display |
Programming key and |
LED indicator is in red when waiting for programming |
|
Temperature range |
Operating temperature |
-5℃～+45℃ |
|
Storage temperature |
-25℃～+55℃ |
|
|
Transport temperature |
-30℃～+70℃ |
|
|
Environmental |
Maximum air humidity |
95% |
|

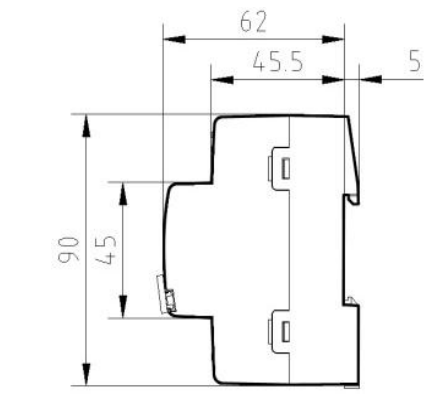

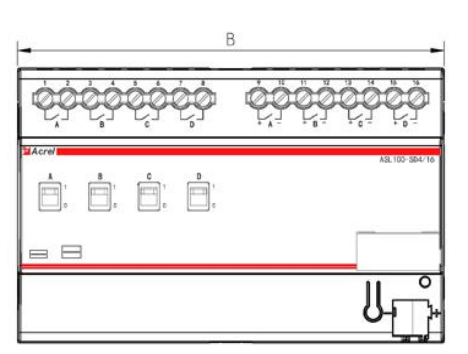

Dimension (mm) |
36x90x62 |
|
|
Installation |
Standard 35mm track installation |
|
