ATP Series Remote Temperature Data Display Touchscreen
ATP Series Remote Temperature Data Display Touchscreen
● Display Temperature Data: From up to 240 ATE Wireless Temperature Sensors
● Communication: 1-channel Ethernet & 2-channel RS485 (MODBUS-RTU)
● Touch Screen Size: 7 Inch & 10 Inch
● Cut-out Dimension: 215*152mm & 261*180mm
● Power Supply: 24V DC (±10%)
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
INFORMATION

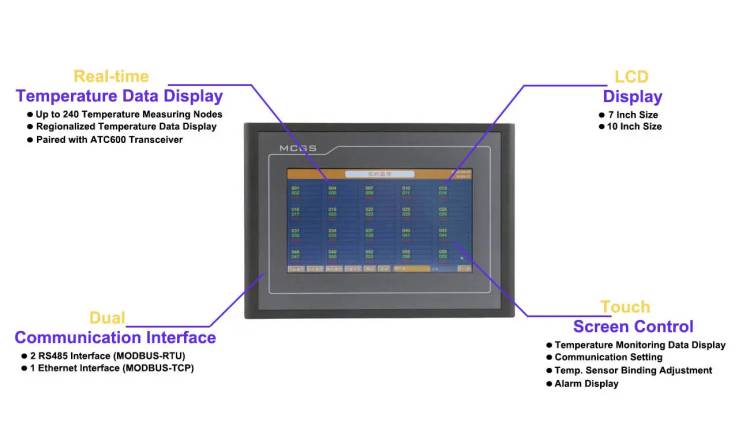

01 Function

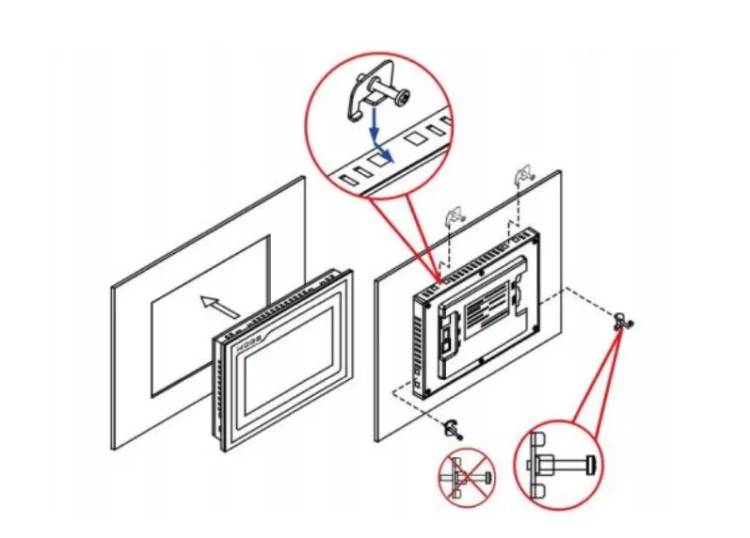

02 Installation
03 Display Sample

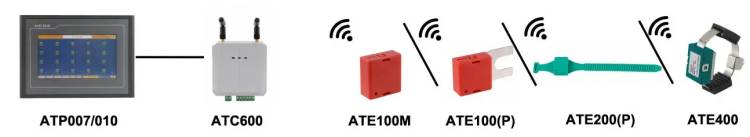

04 Typical Connection
PARAMETERS
|
Items
|
Features
|
|
|
Type of touch screen
|
ATP007,ATP010
|
|
|
Power source
|
DC 24V（±10%），15W
|
|
|
Points of temperature
|
240 points
|
|
|
Range of temperature
|
-50℃~125℃
|
|
|
Precision
|
±1℃
|
|
|
Battery life
|
≥5 years
|
|
|
Communication
|
Interface
|
RS485/Ethernet
|
|
Protocol
|
Modbus-RTU/ Modbus-TCP
|
|
|
Environment
|
Temperature
|
-10℃~55℃
|
|
Humidity
|
≤95%
|
|
|
Altitude
|
≤3000m
|
|
DOWNLOAD
Related Products
CONTACT US
Contact US
Product Information
Quantity
Unit
Piece
Support order samples, customization, wholesale direct, and complete payment. If the product you look for does not have corresponding customized content, pls fill out the form below to contact us, and we will reply ASAP.
