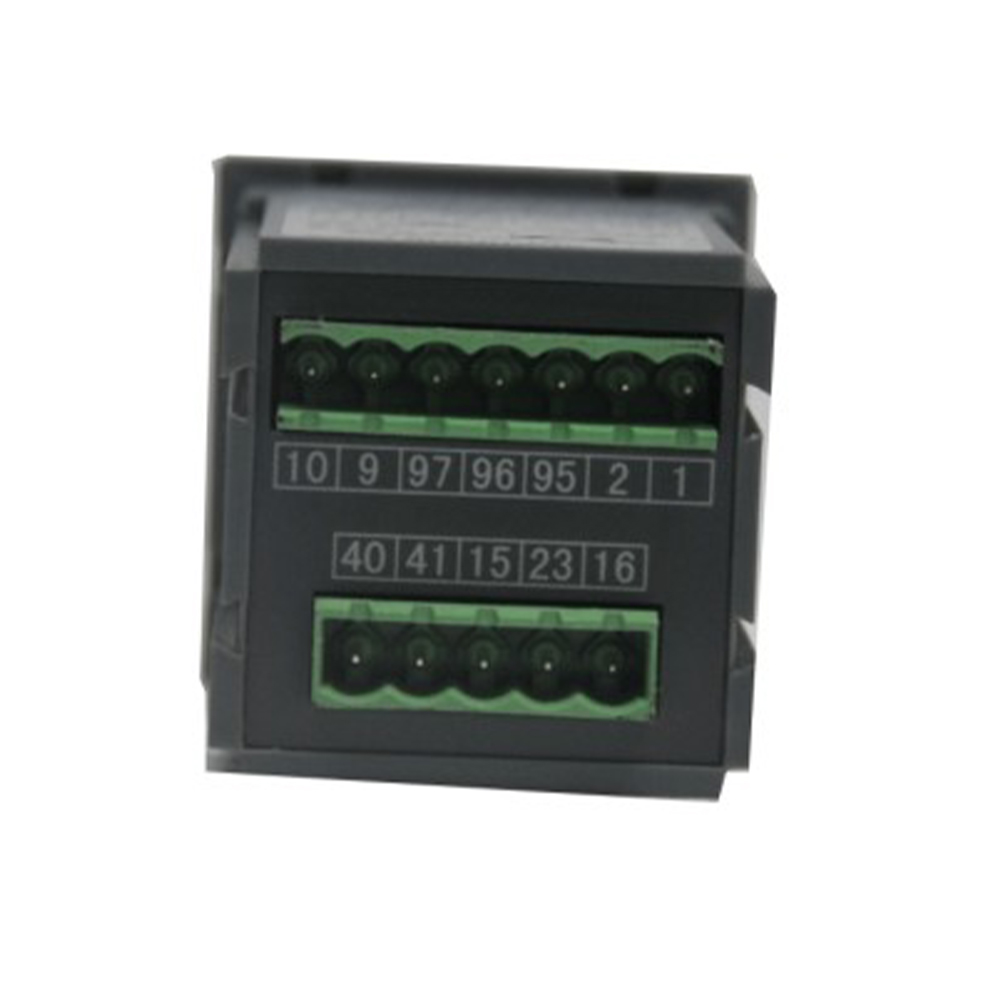

ASJ20-LD1C Residual Current Relay

ASJ20-LD1C Residual Current Relay

● The measurement of AC-type residual current;

● Indicator of current off-limit alarm;

● The setting of rated residual action current;



● The setting of non-driving time of limitation;

● Two-pair relay output;

● Possessing the function of on-the-spot and long-distance testing and resetting



description1
Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
INFORMATION
01 Function



Frequency
50Hz±5Hz

Auxiliary Power Supply

AC110V, AC220V, DC85 ~270V
(permissible error ±10%)

Power consumption
≤5W










Dimension(L*W*H)
85×54×64mm

Installation
DIN rail 35mm







02 Operation Instruction

03 Installation


04 Network

PARAMETERS
Technical Parameter

Value

Input

Rated residual
operated current I△n


0.03, 0.1, 0.3, 0.5(A)


Limitation non driving time


0.1, 0.5(S)


Rated non-action residual current


50%I△n


Frequency


50Hz±5Hz

Tripping accuracy

-20% ~ -10%I△n

Output

Output mode


1 normal changeover contact

Contact capacity
5A 250VAC 5A 30VDC

Reset mode


Local, remote

Auxiliary power supply


Voltage range

AC/DC85~270V

Power consumption

≤5W

Power frequency withstand voltage
The effective value of alternating current between the power supply, input and output: 2kV/1min
