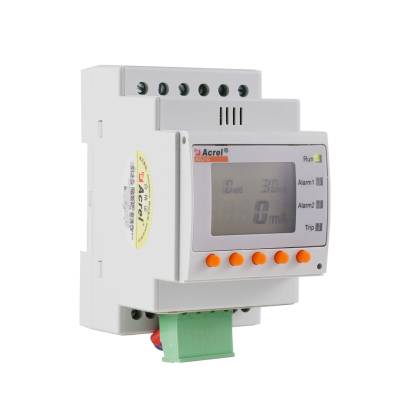

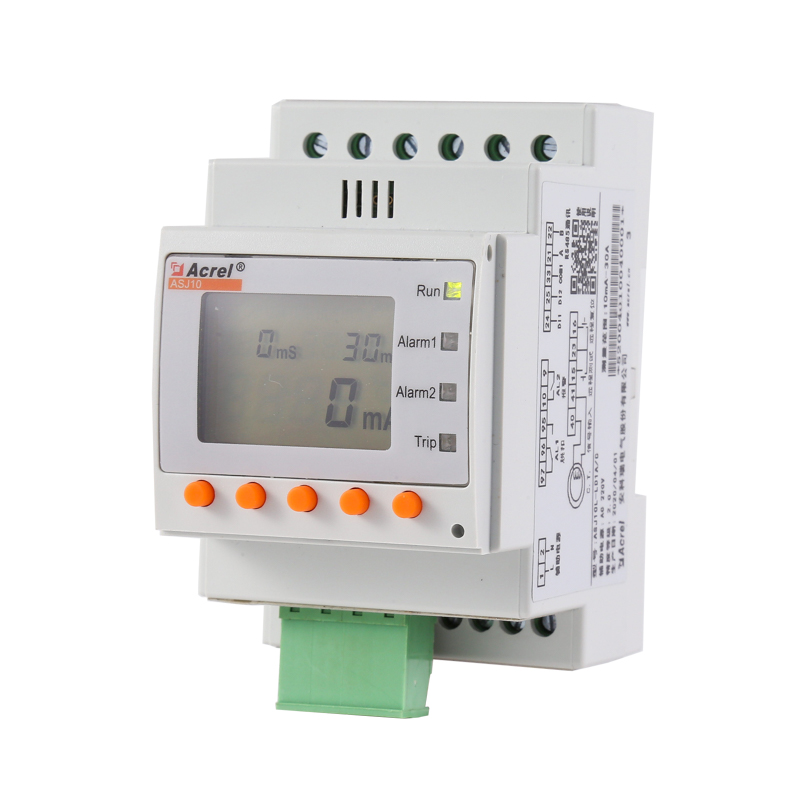

ASJ10L-LD1A Earth Leakage Relay LCD Display

ASJ10L-LD1A Earth Leakage Relay LCD Display

  • The measurement of A-type after-current;
  • The streamer display of current percentage;
  • The setting of rated residual action current;
  • The setting of non-driving time of limitation;
  • Two-pair relay output;
  • Possessing the function of on-the-spot and long-distance testing and resetting.
  • LCD display
  • RS485 Modbus-RTU
description1
Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
INFORMATION
01 Function



Frequency
50Hz±5Hz

Auxiliary Power Supply

AC110V, AC220V, DC85 ~270V
(permissible error ±10%)

Power consumption
≤5W










Dimension(L*W*H)
85×54×64mm

Installation
DIN rail 35mm







02 Dimensions



03 Wiring


04 Network

PARAMETERS
Technical Parameter

Value

Input

Rated residual
operated current I△n


0.03, 0.05, 0.1, 0.3, 0.5, 1, 3, 5, 10, 30(A)


Limitation non driving time


0,0.06, 0.1, 0.2, 0.3, 0.5, 0.8, 1, 4, 10(S)


Rated non-action residual current


50%I△n


Frequency


50Hz±5Hz

Tripping accuracy

-20% ~ -10%I△n

Output

Output mode


1 normal changeover contact

Contact capacity
AL1: 8A 250VAC 5A 30VDC
AL2: 6A 250VAC 5A 30VDC

Reset mode


Local, remote, automatic

Auxiliary power supply


Voltage range

AC/DC85~270V

Power consumption

≤5W

Power frequency withstand voltage
The effective value of alternating current between the power supply, input and output: 2kV/1min
