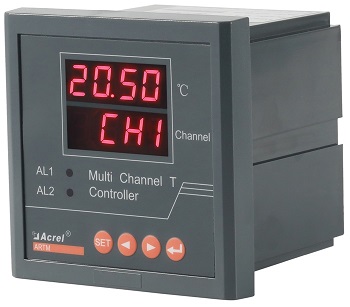

ARTM-8 PT100 Input Temperature Monitor In Cabinet
ARTM-8 PT100 Input Temperature Monitor In Cabinet
● 8 PT100 measurement;
● 2 Alarm relays；
● LED display;
● Auxiliary power supply adapts with AC220V, DC220V, DC110V;
● 1 RS485 serial communication, Modbus-RTU

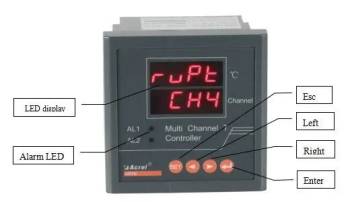

8 PT100 measurement
② ALARM LED
③ ESC
④ LEFT
⑤ Right
⑥ Enter
04 Network
On-site wall-mounted centralized display solution
|
Channels |
8 |
|
|
Inputs |
Termal resistance：Pt100 |
|
|
Accuracy |
0.5s |
|
|
Auxiliary Power supply |
Voltage |
AC85~265V,DC100~350V |
|
Consumption |
≤2W |
|
|
Alarm |
Channels |
2 groups normally open |
|
Capacity |
AC250V/5A，DC30V/5A |
|
|
Communication |
Protocol |
Modbus-RTU |
|
Interface |
RS485 |
|
|
Baud rate(bps) |
Can choose 1200,2400,4800,9600,19200, |
|
|
Isolation |
2kV/1min AC effective value |
|
|
Environment |
Temperature |
Operating：-10~+55℃ |
|
Humidity |
≤95%（No condensation） |
|
|
Altitude |
＜2000m |
|
