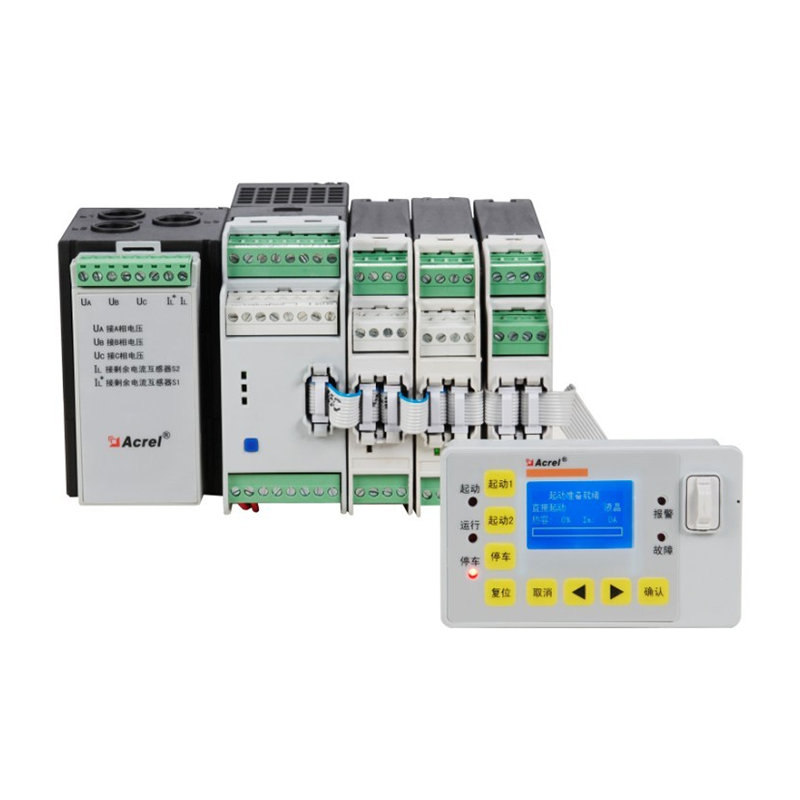

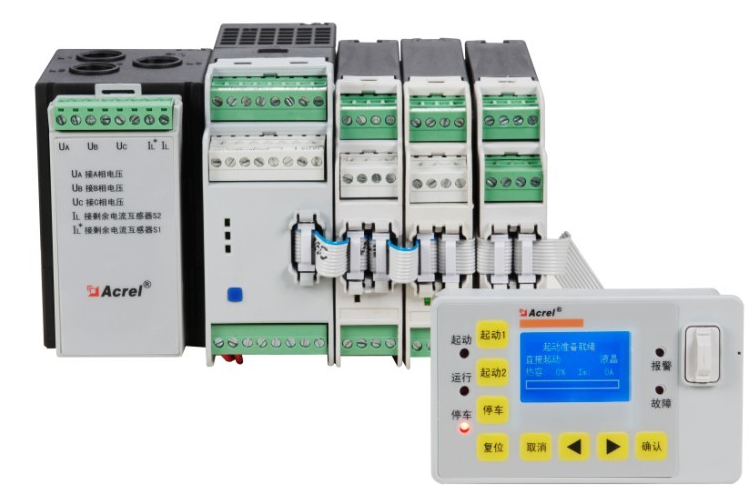

ARD3T Motor Protection Controller
ARD3T Motor Protection Controller
● U, I, P, S, PF, F, EP, Leakage, PTC/NTC/PTC100/PT100/CU50
● Start control function
● 8 programmable DI
● 7 programmable DO
● Modbus-RTU or Profibus-DP communication
● 1 DC4-20mA analog output
● SOE
● Anti-shaking function
② Control function
A variety of control methods, programmable input and output
③ Measurement, monitoring
Three-phase voltage, current, active power, electric energy, leakage current, power factor, PTC/NTC
④ SOE
⑤ Communication：RS485 Modbus RTU or Profibus-DP
03 Network
|

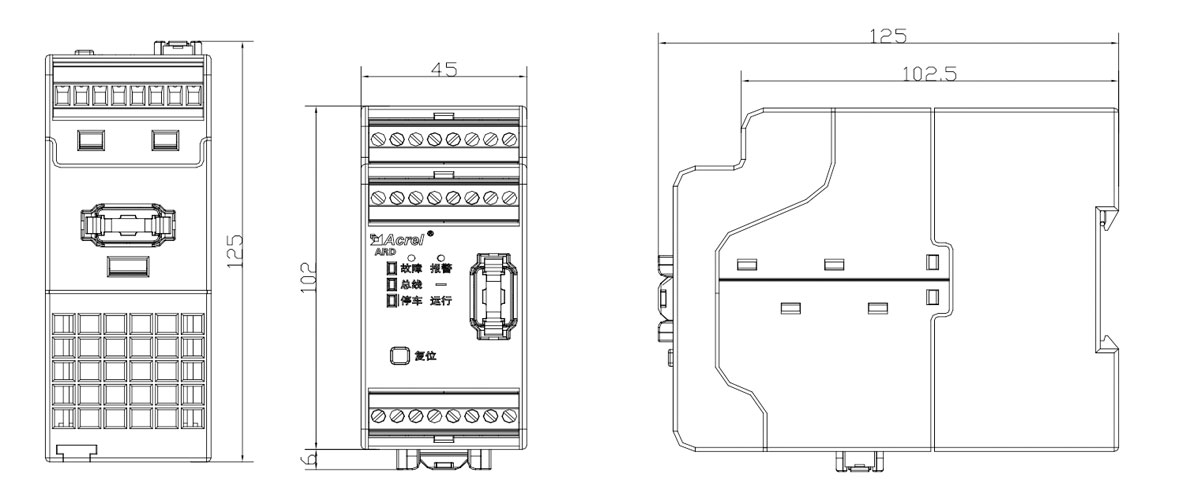

Technical parameters |
Technical indicators |
|
|
Protector auxiliary power supply |
AC/DC110/220V or AC380V, power comsumption 15VA |
|
|
Rated working voltage of the motor |
AC380V / 660V, 50Hz / 60Hz |
|
|
Rated operating current of the motor |
1 (0.1A-5000A) |
Adopt measurement module |
|
5 (0.1A-5000A) |
||
|
25（6.3A-25A） |
||
|
100（25A-100A） |
||
|
250（63A-250A） |
Adopt outlay current tansformer and measurement module |
|
|
800（250A-800A） |
||
|
Leakage |
50mA-1A or 3A-30A |
Adopt measurement module and leakage current transformer |
|
Relay output contact capacity |
Impedance load |
AC250V、6A；DC24V、6A |
|
Master switching input and output |
4DI/4DO |
|
|
Switching value module |
4DI/3DO |
|
|
Temperature module |
Type of external sensor: PT100、PT1000、Cu50、PTC、NTC Sensor’s corresponding measurement range : PT100/PT1000：-50°C～+500°C Cu50：-50°C～+150°C PTC/NTC：100Ω～30kΩ |
|
|
Analog module |
2-channel 4-20mA input and 2-channel 4-20mA output |
|
|
Master communiction |
RS485 Modbus_RTU |
|
|
Communication module |
double RS485 Modbus_RTU, Profibus_DP |
|
|
Environment |
Working temperature |
-10ºC～55ºC |
|
Storage temperature |
-25ºC～70ºC |
|
|
Relative humidity |
≤95﹪No condensation, no corrosive gas |
|
|
Altitude |
≤2000m |
|
|
Pollution levels |
Class 3 |
|
|
Protection grade |
Main body IP20, split display module IP45 (installed on the cabinet panel) |
|
|
Installation category |
Level III |
|
