ARD3M Motor Protection Controller
ARD3M Motor Protection Controller
● Suitable for motors with rated voltage of AC380V/660V;
● Optional leakage protection.
● Input 10 channel; Output 6 channel,2 Channel 4-20mA;

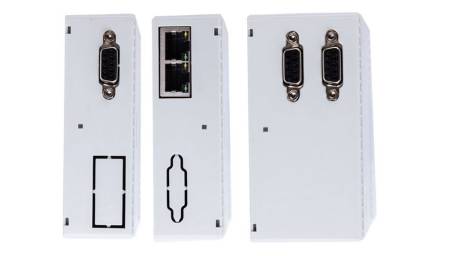

● 2 Channel Modbus RTU; Profibus DP; Profinet; Modbus Tcp; Wifi, etc.
Voltage: Power consumption <0.5VA;
Current: Power consumption< 0.5VA;
Auxiliary power supply:power consumption≤10VA
2 Channel Modbus RTU; Profibus DP; Profinet; Modbus Tcp; Wifi
Input 10 channel; Output 6 channel
Analog:
04 Network
|
Technical parameters |
Technical indicators |
|
|
Protector auxiliary power supply |
Support two power modules, AC 220V power module (AC85-265V/DC100-300V) default, AC 380V power module (AC/DC100-415V) optional |
|
|
Rated working voltage of the motor |
AC220V / 380V / 660V，50Hz / 60Hz |
|
|
Rated operating current of the motor |
1 (0.1A-5000A) |

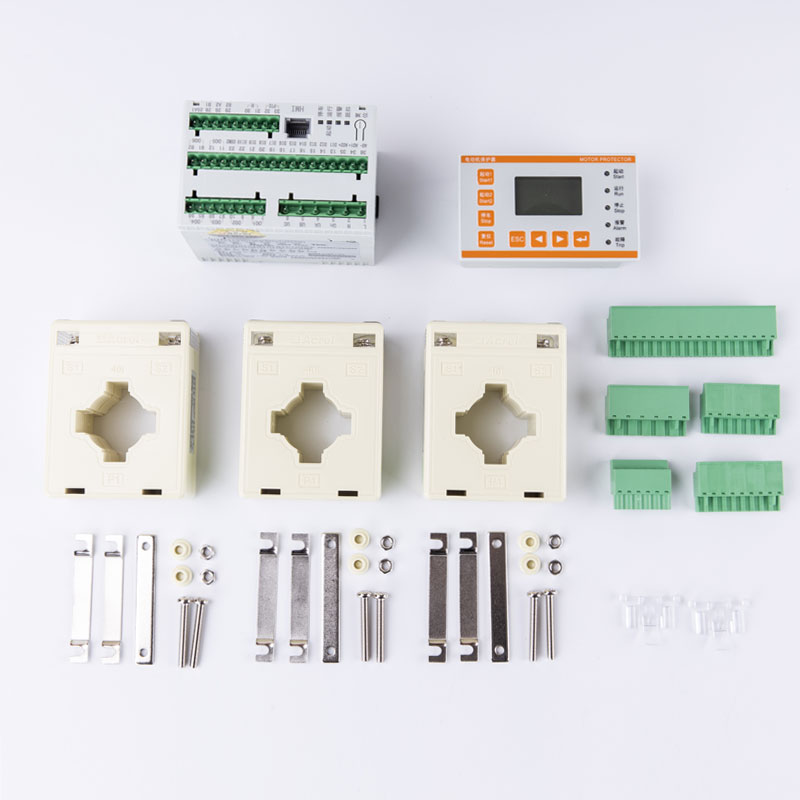

External current transformer |
|
5 (0.1A-5000A) |
||
|
25（6.3A-25A） |
||
|
100（25A-100A） |
||
|
250（63A-250A） |
||
|
800（250A-800A） |
||
|
Relay output contact capacity |
Impedance load |
AC250V、10A |
|
Switching input |
10 channels of passive dry contact (active DC110V, DC220V, AC220V input can be optional) |
|
|
Communication |
Standard supplied |
2channel MODBUS RTU communication |
|
Optional（only one can be selected） |
1-2 channel PROFIBUS DPV1communication、1channel PROFINET communication、Ethernet communication（MODBUS TCP protocol） |
|
|
Environment |
Working temperature |
-10ºC～55ºC |
|
Storage temperature |
-25ºC～70ºC |
|
|
Relative humidity |
≤95﹪No condensation, no corrosive gas |
|
|
Altitude |
≤2000m |
|
|
Pollution levels |
Class 3 |
|
|
Protection grade |

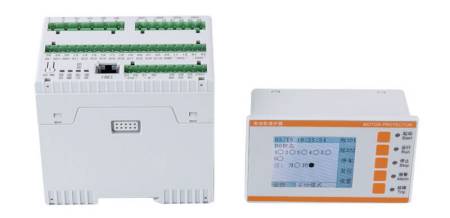

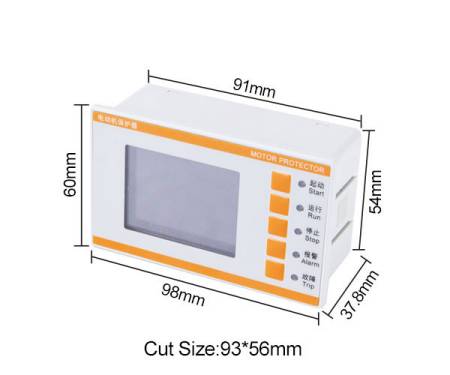

Main body IP20, split display module IP54 (installed on the cabinet panel) |
|
|
Installation category |
Level III |
|
