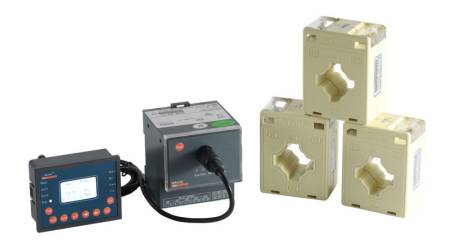

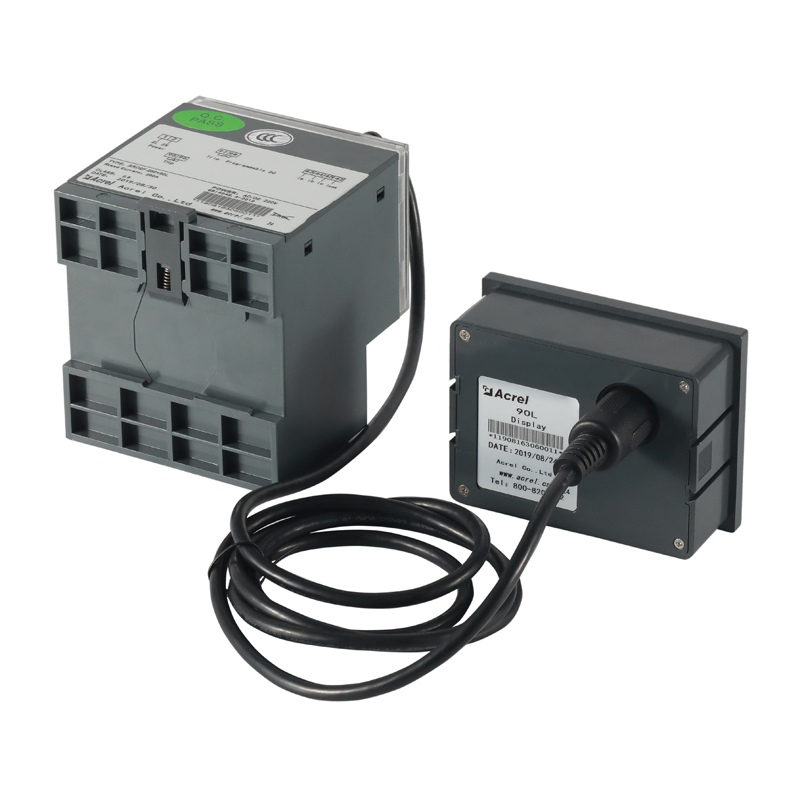

ARD3 Motor Protection Controller
ARD3 Motor Protection Controller
● U, I, P, S, PF, F, EP, Leakage, PTC/NTC
● 16 protect function
● Start control function
● 9 programmable DI
● 5 programmable DO
● Modbus-RTU or Profibus-DP communication
● 1 DC4-20mA analog output
● 20 fault record
● Anti-shaking function

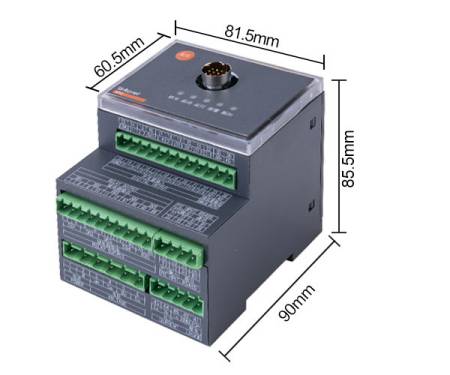

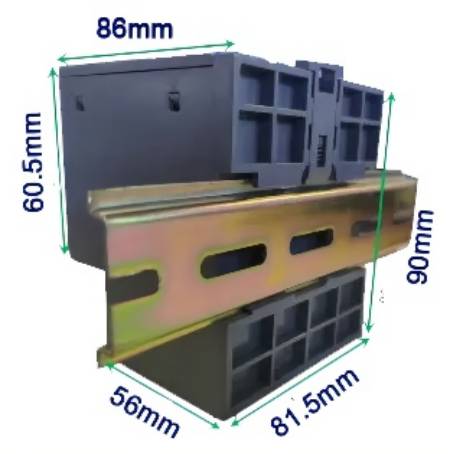

Main body: DIN 35mm

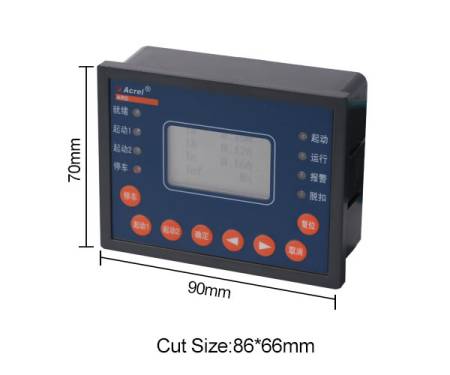

Display unit: Panel mounted

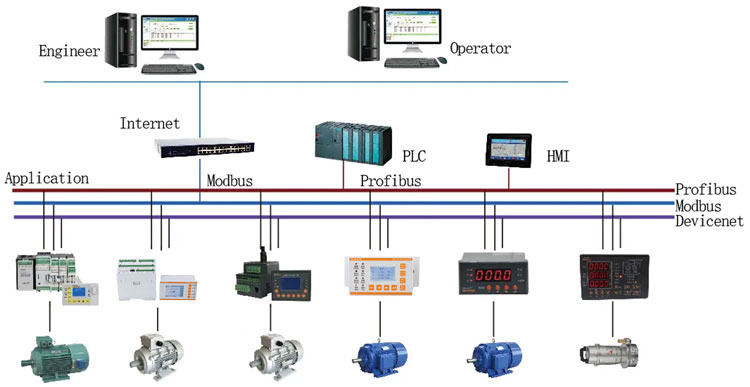

03 Network
|
Technical parameters |
Technical indicators |
|
|
Protector auxiliary power supply |
AC85-265V/DC100-350V,power comsumption 15VA |
|
|
Rated working voltage of the motor |
AC380V / 660V, 50Hz / 60Hz |
|
|
Rated operating current of the motor |
1 (0.1A-5000A) |
Small special current transformers |
|
5 (0.1A-5000A) |
||
|
25（6.3A-25A） |
||
|

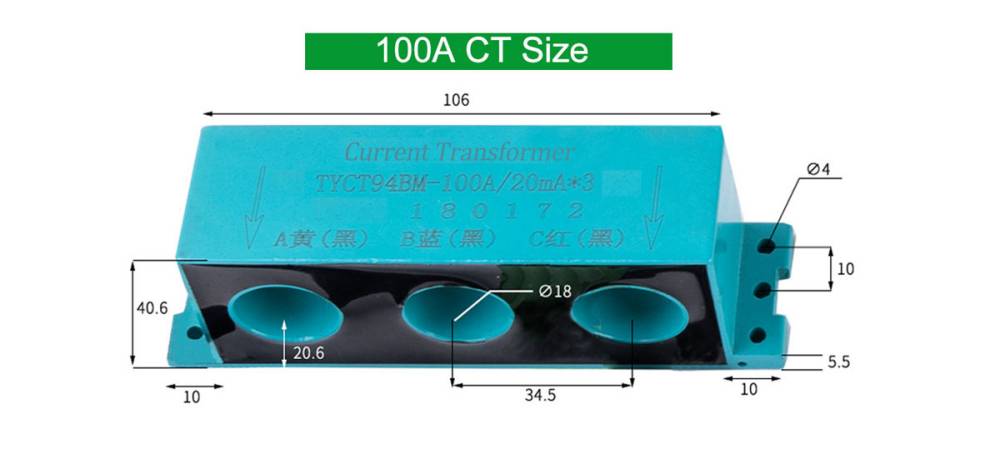

100（25A-100A） |
||
|

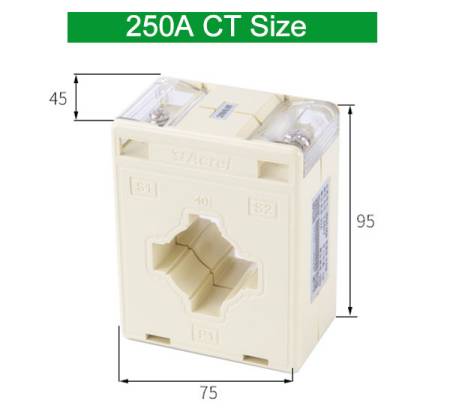

250（63A-250A） |
Special current transformers |
|
|

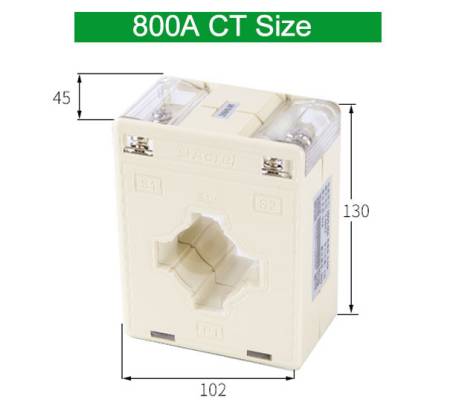

800（250A-800A） |
||
|
Relay output contact capacity |
Impedance load |
AC250V、10A |
|
Relay output contactor, |
5 channels,AC 250V 6A |
|
|
Switching input |
9 channels,opto-coupler isolation |
|
|
Communication |
RS485 Modbus_RTU, Profibus_DP |
|
|
Environment |
Working temperature |
-10ºC～55ºC |
|
Storage temperature |
-25ºC～70ºC |
|
|
Relative humidity |
≤95﹪No condensation, no corrosive gas |
|
|
Altitude |
≤2000m |
|
|
Pollution levels |
Class 2 |
|
|
Protection grade |
Main body IP20, split display module IP54 (installed on the cabinet panel) |
|
|
Installation category |
Level III |
|
