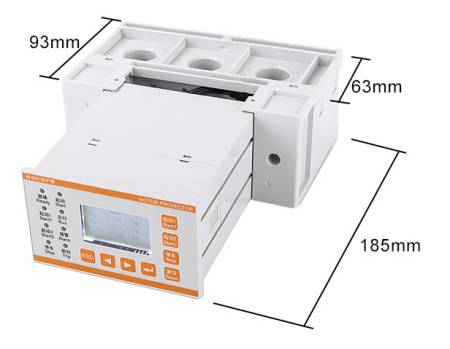

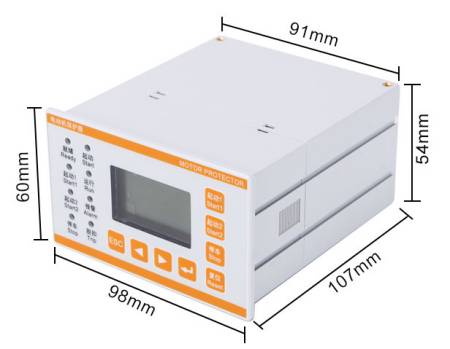

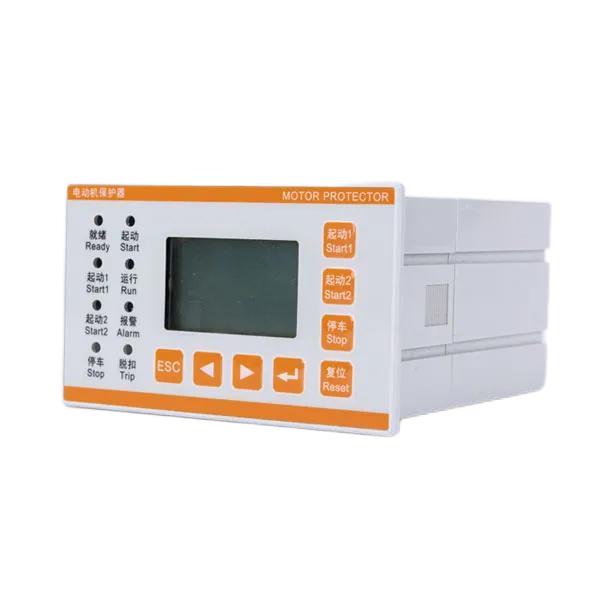

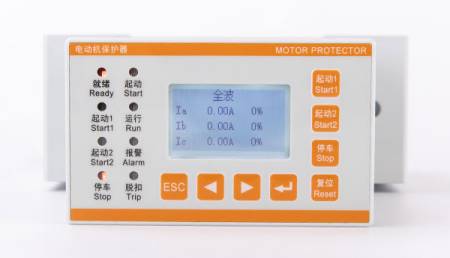

ARD2M Motor Protection Controller
ARD2M Motor Protection Controller
● U, I, P, S, PF, F, EP, Leakage, PTC/NTC
● Start control function
● 8 programmable DI
● 5 programmable DO
● Modbus-RTU or Profibus-DP communication
● 1 DC4-20mA analog output
● SOE
● Anti-shaking function
② Control function
A variety of control methods, programmable input and output
③ Measurement, monitoring
Three-phase voltage, current, active power, electric energy, leakage current, power factor, PTC/NTC
④ SOE
⑤ Communication(RS485 Modbus RTU or Profibus-DP)
03 Network
|
Technical parameters |
Technical indicators |
|
|
Protector auxiliary power supply |
AC85-265V/DC100-350V |
|
|
Rated working voltage of the motor |
AC220V / 380V, 50Hz / 60Hz |
|
|
Rated operating current of the motor |
1 (0.1A-5000A) |
Integrated/Split current transformer |
|
5 (0.1A-5000A) |
||
|
25（6.3A-25A） |
||
|
100（25A-100A） |
||
|
250（63A-250A） |
Split current transformer |
|
|
800（250A-800A） |
||
|
Relay output contact capacity |
Impedance load |
AC250V、10A |
|
Switching input |
8 channels of passive dry contact (active DC110V, DC220V, AC220V input can be optional) |
|
|
Communication |
RS485 Modbus_RTU, Profibus_DP |
|
|
Environment |
Working temperature |
-10ºC～55ºC |
|
Storage temperature |
-25ºC～70ºC |
|
|
Relative humidity |
≤95﹪No condensation, no corrosive gas |
|
|
Altitude |
≤2000m |
|
|
Pollution levels |
Class 3 |
|
|
Protection grade |
Main body IP20, split display module IP54 (installed on the cabinet panel) |
|
|
Installation category |
Level III |
|
