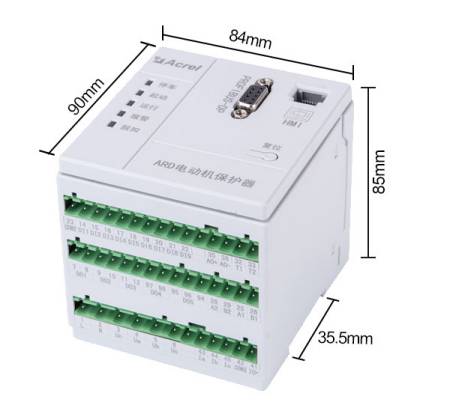

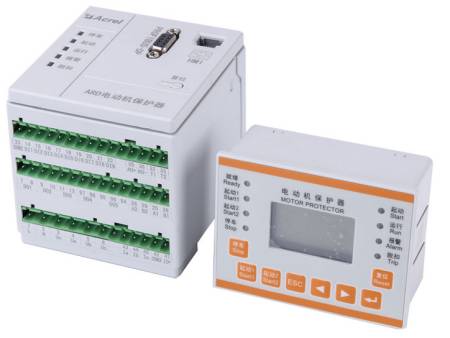

ARD2F Motor Protection Controller
ARD2F Motor Protection Controller
● U, I, P, S, PF, F, EP, Leakage, PTC/NTC
● 16 protect function
● Start control function
● 9 programmable DI
● 5 programmable DO
● Modbus-RTU or Profibus-DP communication
● 1 DC4-20mA analog output
● 20 fault record
● Anti-shaking function
② Control function
A variety of control methods, programmable input and output
③ Measurement, monitoring
Three-phase voltage, current, active power, electric energy, leakage current, power factor, PTC/NTC
④ Operation and maintenance records
⑤ Communication

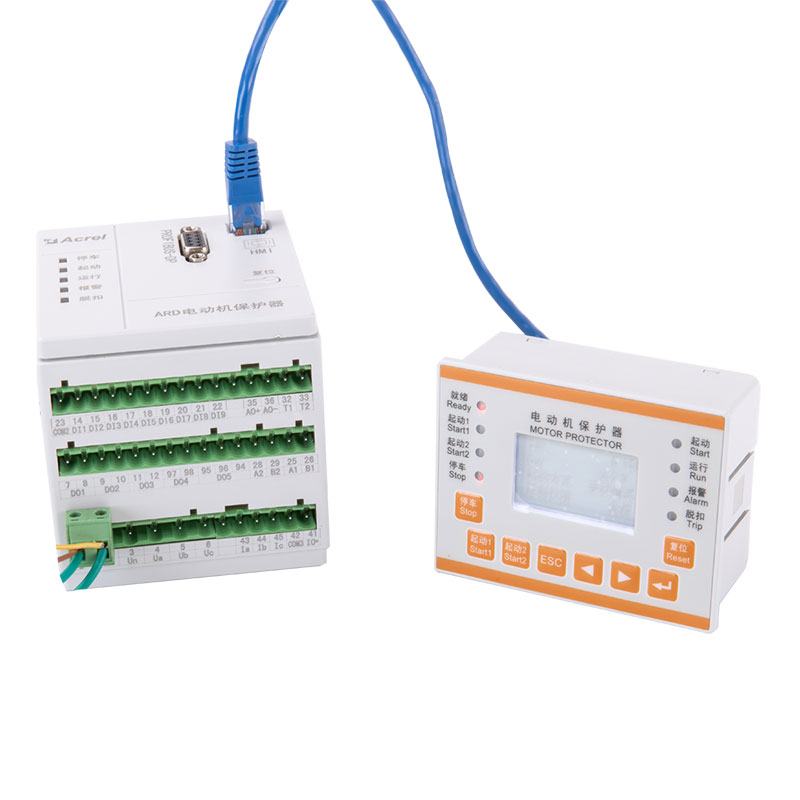

⑥ Human-computer interaction
03 Network
|
Technical parameters |
Technical indicators |
|
|
Protector auxiliary power supply |
Support two power modules, AC 220V power module (AC85-265V/DC100-300V) default, AC 380V power module (AC/DC100-415V) optional |
|
|
Rated working voltage of the motor |
AC220V / 380V / 660V，50Hz / 60Hz |
|
|
Rated operating current of the motor |
1 (0.1A-5000A) |
External current transformer |
|
5 (0.1A-5000A) |
||
|
1.6 (0.4A-1.6A) |
||
|
6.3 (1.6A-6.3A) |
||
|
25（6.3A-25A） |
||
|
100（25A-100A） |
||
|
250（63A-250A） |
||
|
800（250A-800A） |
||
|
Relay output contact capacity |
Impedance load |
AC250V、10A |
|
Switching input |
10 channels of passive dry contact (active DC110V, DC220V, AC220V input can be optional) |
|
|
Communication |
MODBUS RTU communication,PROFIBUS_DP communication |
|
|
Environment |
Working temperature |
-10ºC～55ºC |
|
Storage temperature |
-25ºC～70ºC |
|
|
Relative humidity |
≤95﹪No condensation, no corrosive gas |
|
|
Altitude |
≤2000m |
|
|
Pollution levels |
Class 3 |
|
|
Protection grade |

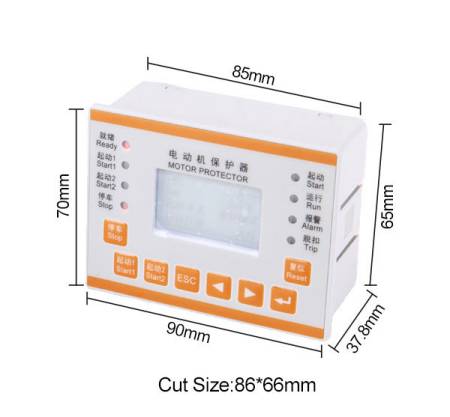

Main body IP20, split display module IP54 (installed on the cabinet panel) |
|
|
Installation category |
Level III |
|
