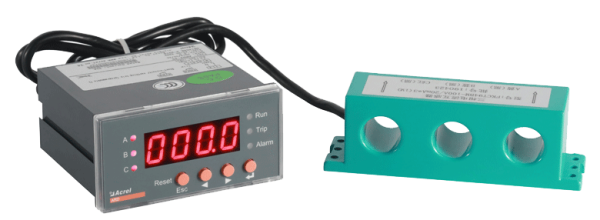

ARD2 Motor Protection Controller
ARD2 Motor Protection Controller
● Suitable for motors with rated voltage of AC380V/660V;
● Optional leakage protection, RS485 communication, analog output, etc.
● 2 channels DI passive dry node input, signal power supply with built-in DC24V power supply;
● 4 channels DO output.
Voltage: Power consumption <0.5VA;
Current: Power consumption< 0.5VA;
Auxiliary power supply:power consumption≤10VA
04 Network
|
Technical parameters |
Technical indicators |
|
|
Protector auxiliary power supply |
AC85-265V/DC100-350V,power comsumption 15VA |
|
|
Rated working voltage of the motor |
AC380V / 660V, 50Hz / 60Hz |
|
|
Rated operating current of the motor |
1 (0.1A-5000A) |
Small special current transformers |
|
5 (0.1A-5000A) |
||
|
25（6.3A-25A） |
||
|
100（25A-100A） |
||
|
250（63A-250A） |
Special current transformers |
|
|
800（250A-800A） |
||
|
Relay output contact capacity |
Impedance load |
AC250V、10A |
|
Relay output contactor, |
1 channels,AC 250V 6A |
|
|
Switching input |
2 channels,opto-coupler isolation |
|
|
Communication |
RS485 Modbus_RTU, Profibus_DP |
|
|
Environment |
Working temperature |
-10ºC～55ºC |
|
Storage temperature |
-25ºC～70ºC |
|
|
Relative humidity |
≤95﹪No condensation, no corrosive gas |
|
|
Altitude |
≤2000m |
|
|
Pollution levels |
Class 2 |
|
|
Protection grade |
Main body IP20, split display module IP54 (installed on the cabinet panel) |
|
|
Installation category |
Level III |
|
