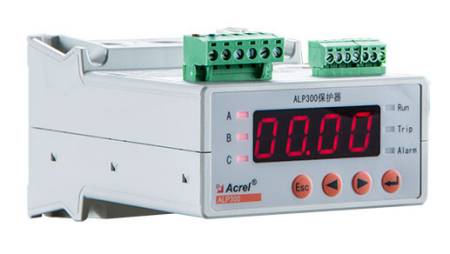

ALP300 Motor Protection Controller
ALP300 Motor Protection Controller
● 2 programmable DI
● 4 programmable DO
● Modbus-RTU communication
● 1 DC4-20mA analog output
② Analog
③ Measurement, monitoring
Three-phase current, leakage current
④ Communication(RS485 Modbus RTU)

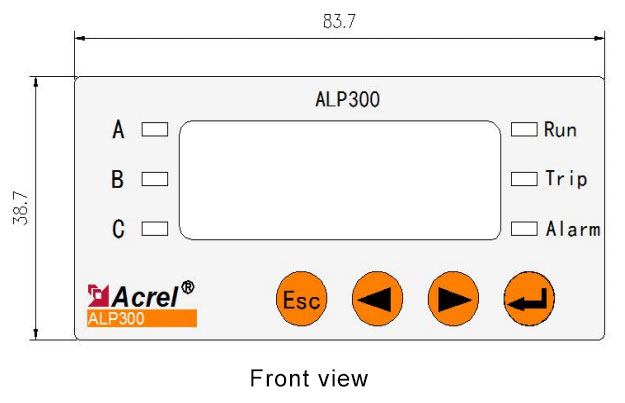

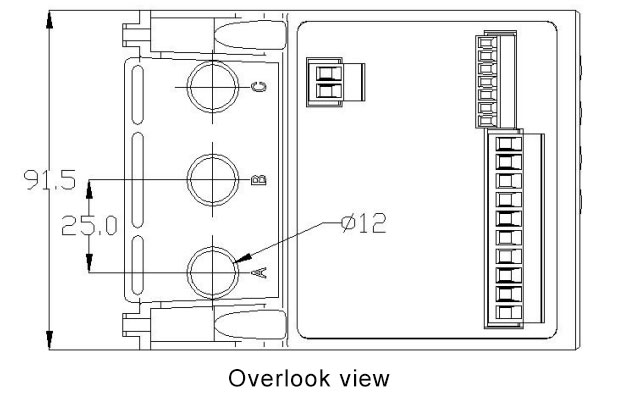

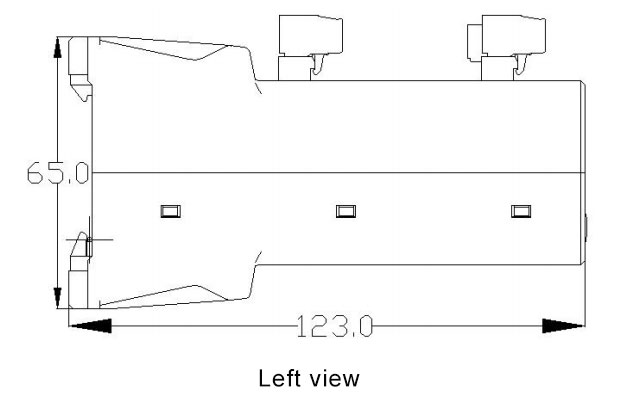

02 Dimension
03 Network
|
Technical parameters |
Technical indicators |
|
|
Protector auxiliary power supply |
AC85V~265V |
|
|
Rated working voltage of the motor |
AC380V，50Hz/60Hz |
|
|
Rated operating current of the motor |
5 (0.1A-5000A) |
|
|
25（6.3A-25A） |
||
|
100（25A-100A） |
||
|
Switching input |
4 channels, AC250V,3A;DC30V,3A |
|
|
Communication |
MODBUS RTU communication |
|
|
Environment |
Working temperature |
-10ºC～55ºC |
|
Storage temperature |
-25ºC～70ºC |
|
|
Relative humidity |
≤95﹪No condensation, no corrosive gas |
|
|
Altitude |
≤2000m |
|
|
Pollution levels |
Class 2 |
|
|
Protection grade |
IP30 |
|
