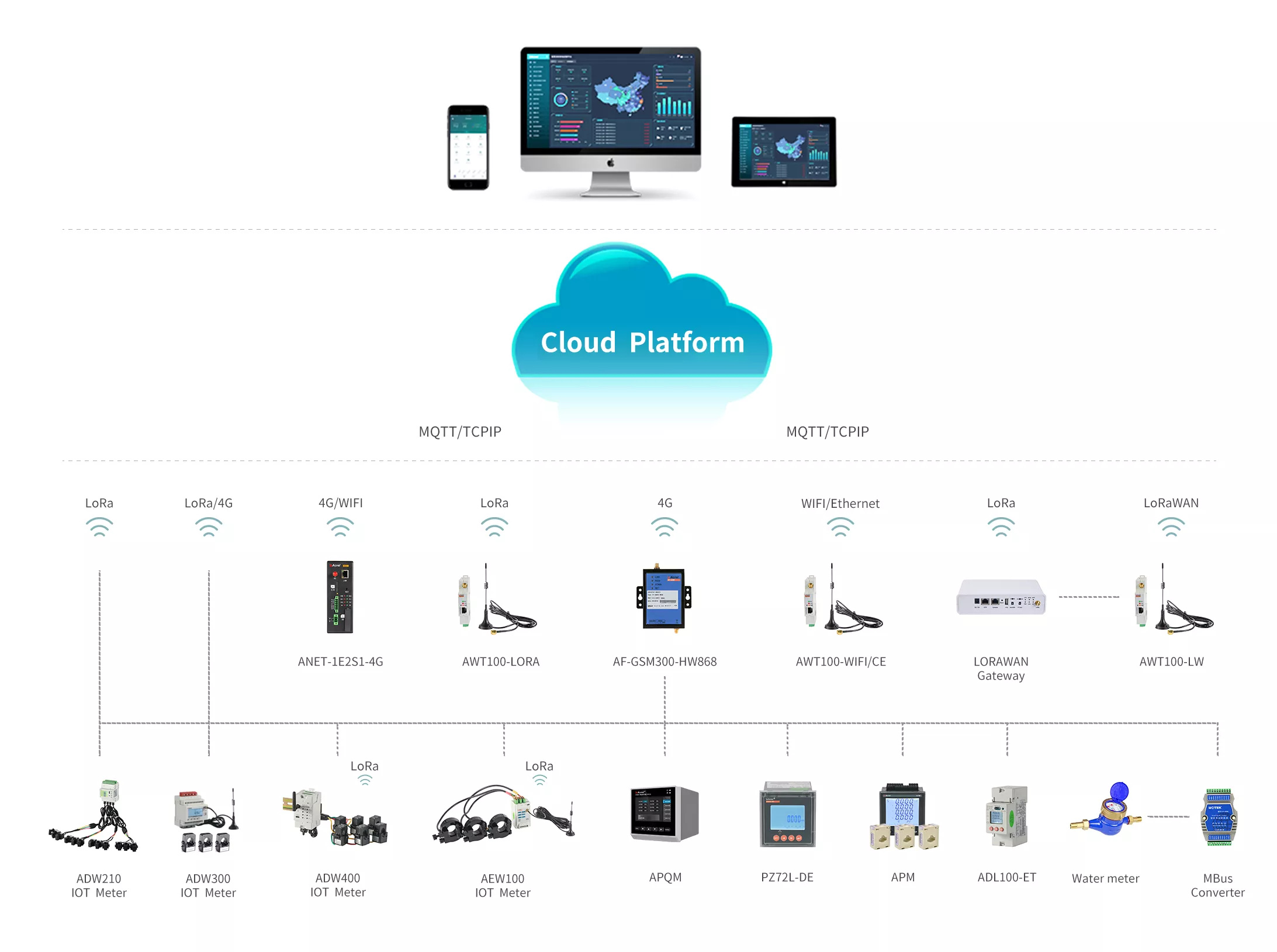

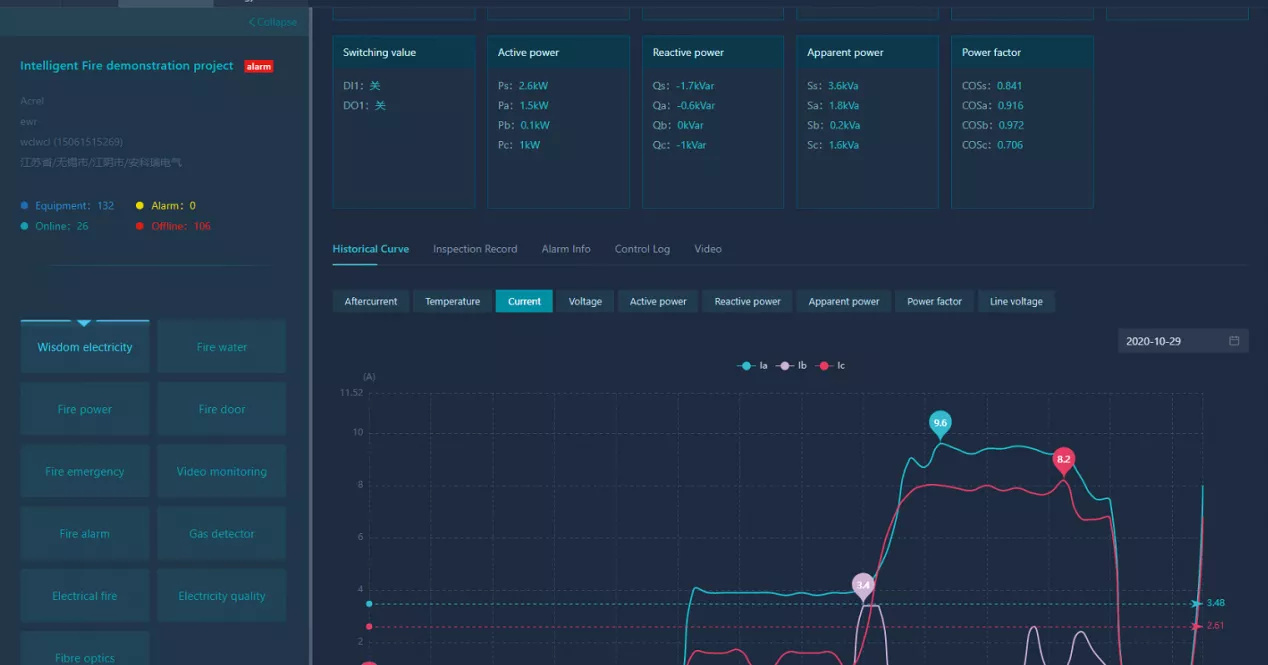

Cloud Platform for Power IOT

product selection of Cloud Platform for Power IOT

Application

Type

Functions

Gateway

AF-GSM500-4G

1.Meter reading by LoRa or RS485

2. Uplink Communication:4G or Ethernet

3. Protocol: Modbus-TCP,MQTT,etc,protocol can be customized

4. Support breakpoint transmission,local data storage,local display and button setting.

Anet-1E2S-4G

1. Downlink:2* RS485

2. Uplink:4G

AF-GSM300-HW868

1. Downlink:LoRa or RS485

2. It is used with AEW100-HW868

3. Uplink:4G

4. Protocol:MQTT

AWT100-4GHW



1.  Downlink:RS485

2. Uplink:4G,WiFi or Ethernet

IOT meter

AEW100

1. Measurement:3 phase voltage,current,power,power factor ,etc.

2. 2-31st individual  harmonic and THD measurement

3. Extreme records of voltage,current and power in this month and last 3 months

4. Max demand and historical MD of last 12 months

5. SOE

6. Communication:RS485 or LoRa

ADW210

1. Measurement: 4 circuits 3 phase voltage,current,power,power factor ,etc.

2. Max demand

3. Communication:RS485 or LoRa

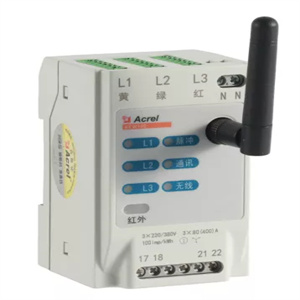

ADW300

1. Measurement:3 Phase voltage,current,power,power factor,etc.

2. Accuracy:1

3. Max demand

4. Communication:RS485,LoRa,4G,NB or 2G

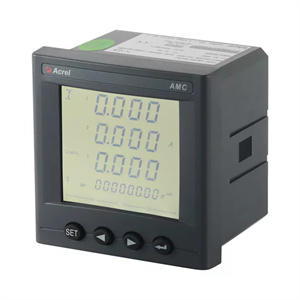

AMC96

1. Measurement:current,voltage,active power,reactive power,etc.

2. Accuracy:0.5

3. Communication:RS485

4. Certificate:CE,IEC

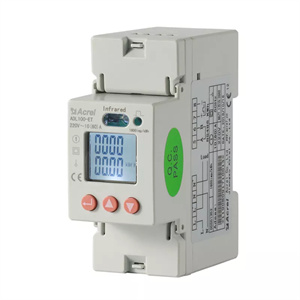

ADL10-ET

1. Measurement:voltage,current,power,energy,etc.

2. Multi-tariff function

3. Communication:RS485 Mobus-RTU

Split core CT

AKH-0.66/K

1. Current ratio:up to 5000/5A

2. Accuracy:0.5,0.2

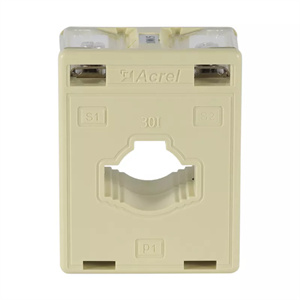

Closed loop CT

AKH-0.66I

1. Current ratio:up to 6300/5A

2. Accuracy:0.2,0.5
