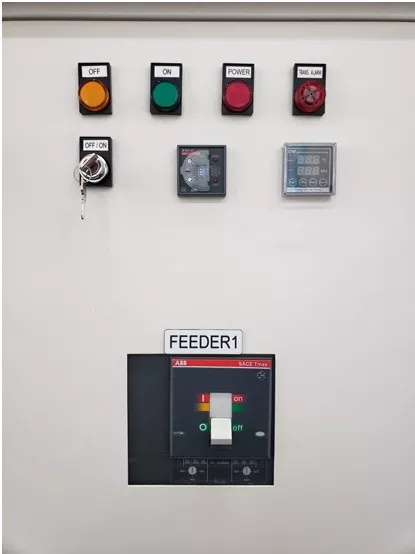

Residual Current Operated Relay

Model


Installation

Main Function

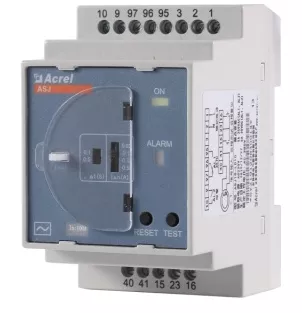

ASJ10-LD1C

DIN35mm

Monitoring of Type AC leakage current;

Warning at 50% I△n and alarm at I△n;

Adjustable I△n from 0.03 to 0.5A;

Adjustable time delay from 0.1 to 0.5s;

One warning relay, one alarm relay;

Local and remote "TEST", "RESET".

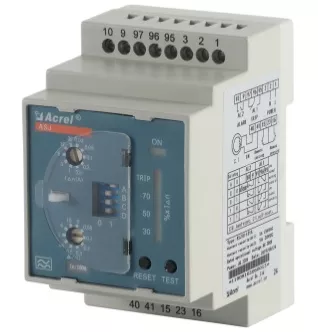

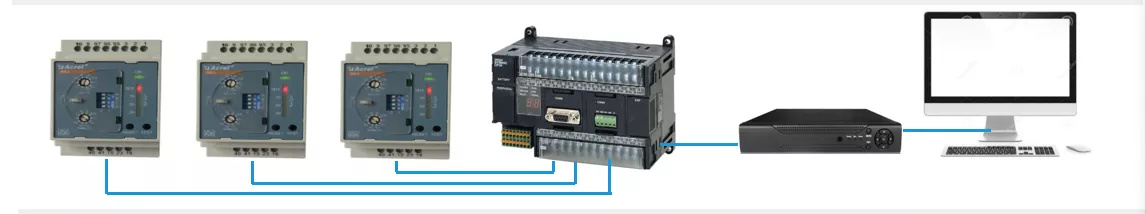

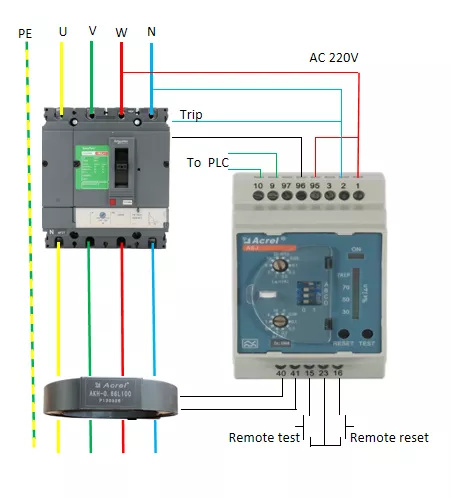

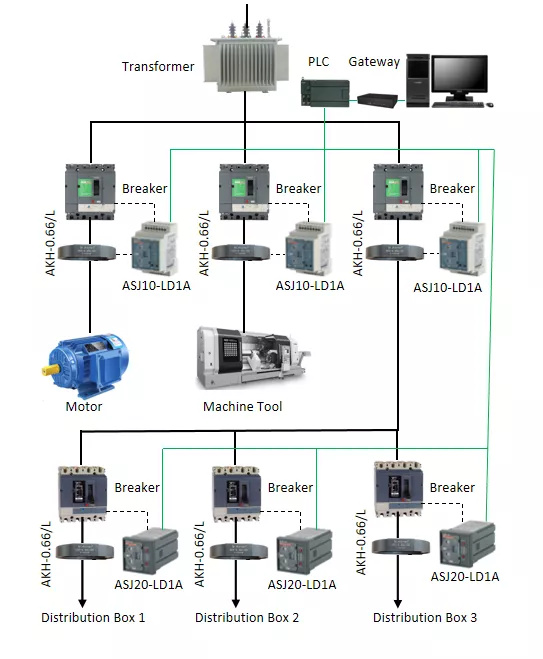

ASJ10-LD1A

Monitoring of Type A leakage current;

LED bar graph display leakage currents;

 Adjustment of I∆n from 0.03 to 30 A;

Adjustment of time delay 0 to 10 s;

2 configurable relays;

Local and remote "TEST", "RESET"

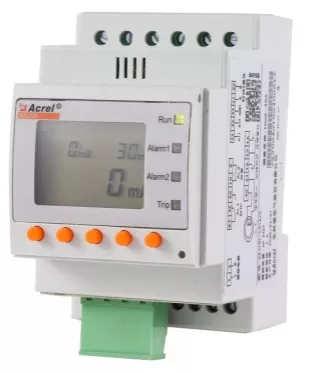

ASJ10L- LD1A

Monitoring of Type A leakage current;

Adjustment of I∆n from 0.03 to 30 A;

Adjustment of time delay 0 to 10 s;

2 configurable relays;

Settable toroid disconnect alarm;

Adjustment of pre-alarm value;

Adjustment of auto rest value;

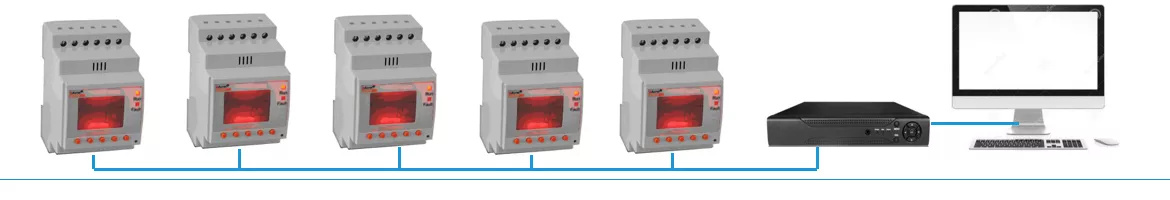

RS485 Optional function;

Local and remote "TEST", "RESET";

SOE fault record

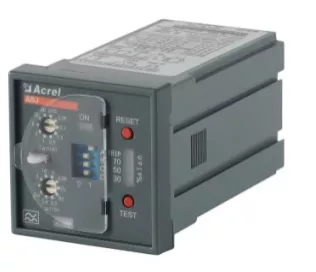

ASJ20-LD1C

Monitoring of Type AC leakage current;

Warning at 50% I△n and alarm at I△n;

Adjustment of I∆n from 0.03 to 0.5 A;

Adjustable time delay from 0.1 to 0.5s;

One warning relay, one alarm relay;

Local and remote "TEST", "RESET"

ASJ20-LD1C

Monitoring of Type A leakage current

LED bargraph display leakage currents;

Adjustment of I∆n from 0.03 to 30 A;

Adjustment off time delay 0 to 10 s;

2 configurable relays;

Local and remote "TEST", "RESET"

Appearance

Model

Rated Load

Ratio

Class

Φ（mm）

L-35

16~100A

5A/5mA

0.5

35

L-70

100~250A

5A/5mA

0.5

70

L-105

250~400A

5A/5mA

0.5

105

L-45

16~100A

5A/5mA

1

45

L-80

100~250A

5A/5mA

1

80

L-100

250~400A

5A/5mA

1

100

L-150

400~800A

5A/5mA

1

150

L-200

800~1500A

5A/5mA

1

200

L-80×50II

16~100A

5A/5mA

0.5

82×52

L-100×50II

16~100A

5A/5mA

0.5

103×55

L-130×50II

100~200A

5A/5mA

0.5

135×55

L-150×130II

100~300A

5A/5mA

0.5

150×133

L-180II

100~200A

5A/5mA

0.5

182×35

L-200×50II

250~400A

5A/5mA

0.5

202×61

L-260×100II

450~800A

5A/5mA

0.5

265×104

L-170 × 30

100~200A

5A/5mA

1

172×34

L-210×160

450~800A

5A/5mA

0.5

210×160
