Energy Efficiency Management System

Energy Efficiency Management System

Mar 30, 2022

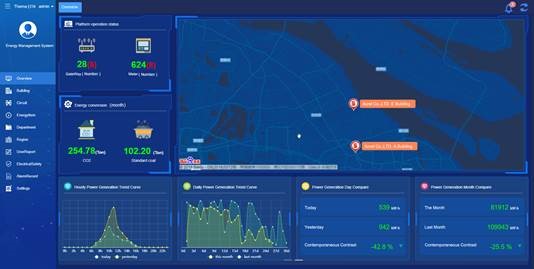

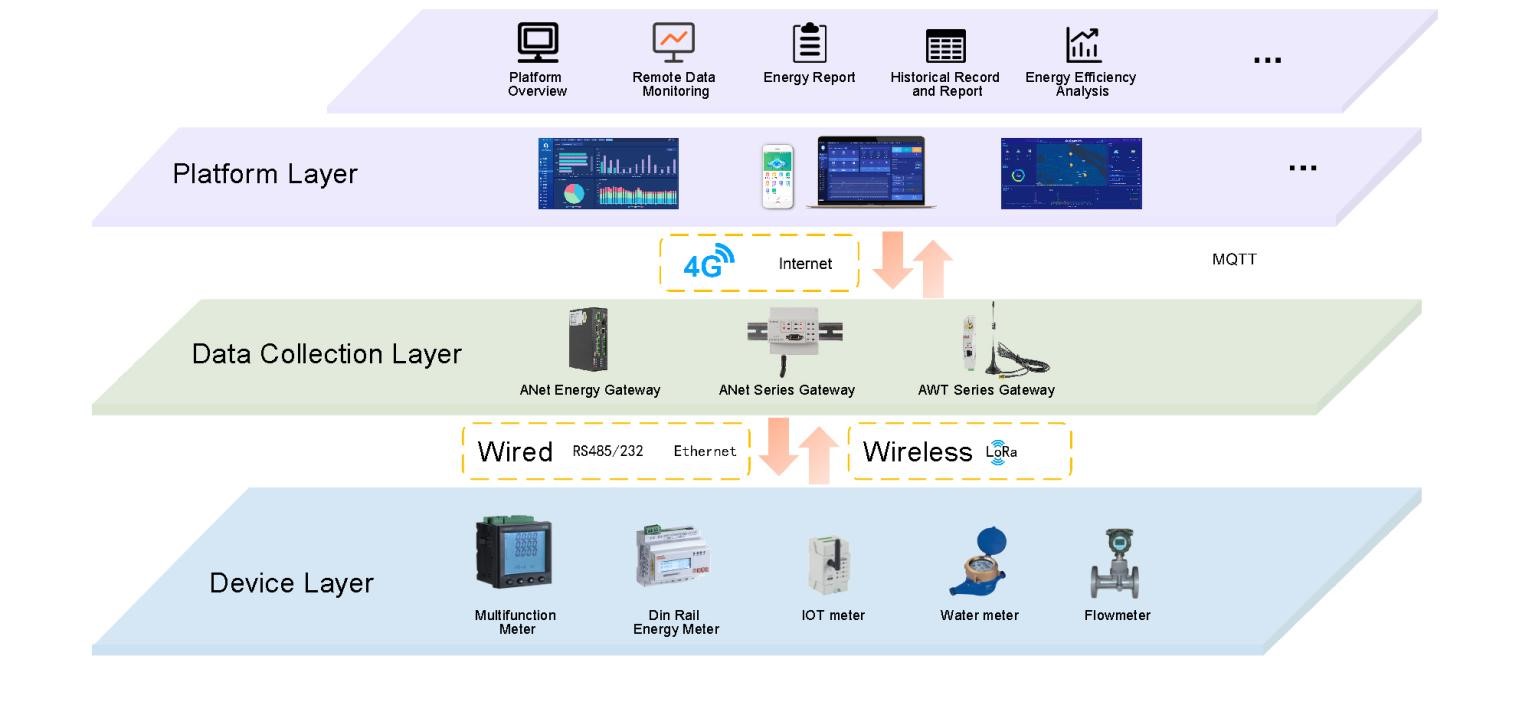

  • Platform Overview

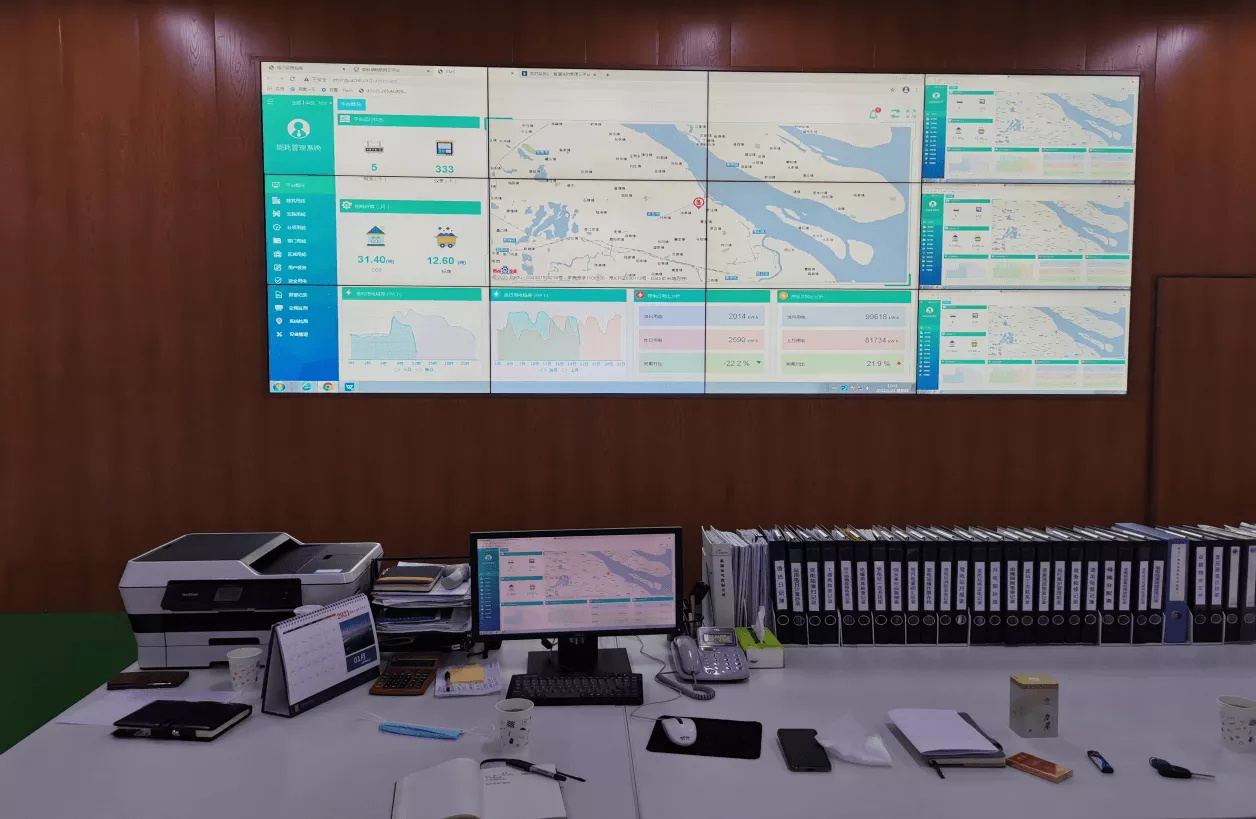

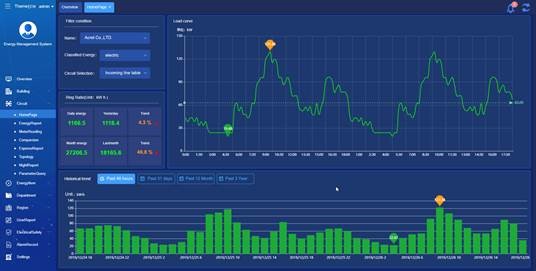

  • Remote Data Monitoring

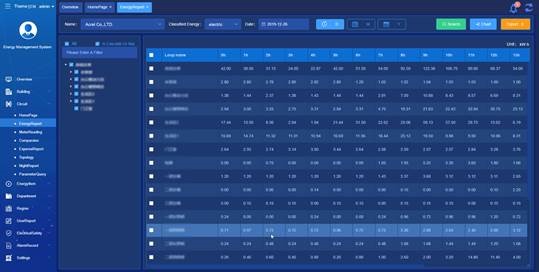

  • Energy Report

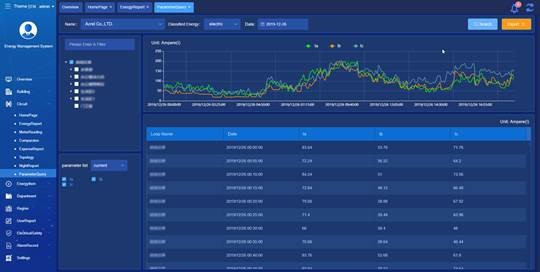

  • Historical record and report

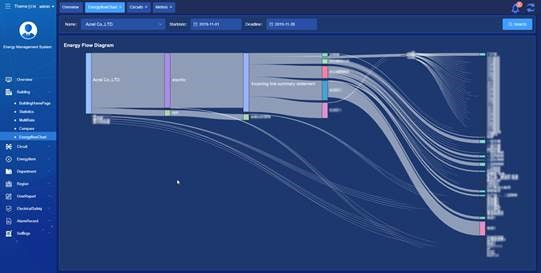

  • Energy Efficiency Analysis
  •
  •
  •
  •

  •
  •
  •
  •


Application

Type

Functions



High voltage or Low voltage circuit

APM810

● True RMS Measurements

● THD with 63rd Harmonics

● K-Factor and Crest Factor

● Unbalance & Phase Angles

● Demands and Multi-Tariff energy

● Max/Min Log with Timestamp



Power cabinet

AMC96L-E4/KC

● True RMS Measurements

● THD with 2-31st Harmonics

● Max/Min Log with Timestamp

● Internal Optional 4DI&2DO or 2DI&2DO&2AO

● Standard one Energy Pulse Output





Power cabinet

ADW400

● Measurement: Maximum 4 circuits 3 phase U、I、P、Q、S、PF、kWh、kvarh

●3×220/380V,3*380V,3*57.7/100V,3*100V

● 3×1(6)A,3×20(100)A,3×80(400)A,3×120(600)A

● Communication:RS485 or LoRa



Power cabinet

Lighting cabinet

ADL3000-E

●AC3×220/380V,3×380V,3×57.7/100V,3×100V

● 3×1(6)A,3×10(80)A

●  U、I、P、Q、S、PF、kWh、kvarh

● RS485(MODBUS-RTU)

● LCD display

● Frozen data

● 2-31st  Harmonics

● kWh Class 0.5S,kVarh Class 2



Power cabinet

Lighting cabinet

ADL400

●AC220V

●3×1(6)A,3×10(80)A

●RS485(MODBUS-RTU)

●Set parameters

●LCD display

●kWh Class 0.5

●DIN 35 mm



Lighting cabinet

ADL100-ET

● AC220V

● 10(60)A,20(100)A

● RS485(MODBUS-RTU)

● Set parameters

● LCD display

● kWh Class 1

● DIN 35 mm



Lighting cabinet

ADL200

●AC220V

●3×10(80)A

●RS485(MODBUS-RTU)

●Set parameters

●LCD display

●kWh Class 1

●DIN 35 mm



Lighting cabinet

ADL10-E

● AC 220V

● 10(60)A

● RS485,MODBUS-RTU

● LCD display

● kWh Class 1,Kvarh Class 2

● U、I、P、Q、S、PF、kWh、kvarh

● DIN 35mm

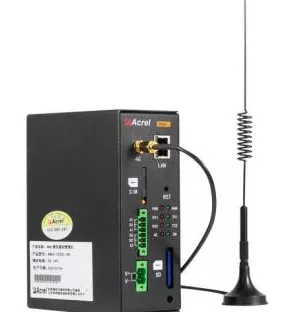

Gateway

ANet series

● Support Modbus-RTU,Modbus-TCP,DLT645,

IEC103,CJT188 device

● Support HTTP(s) XML and JSON forwarding format

● Max 1000 data points,max 64 devices

● 1 GPRS for data transmit(2G/3G/4G) (Optional)

● Build-in SQL data base


  •
  •
  •
  •
