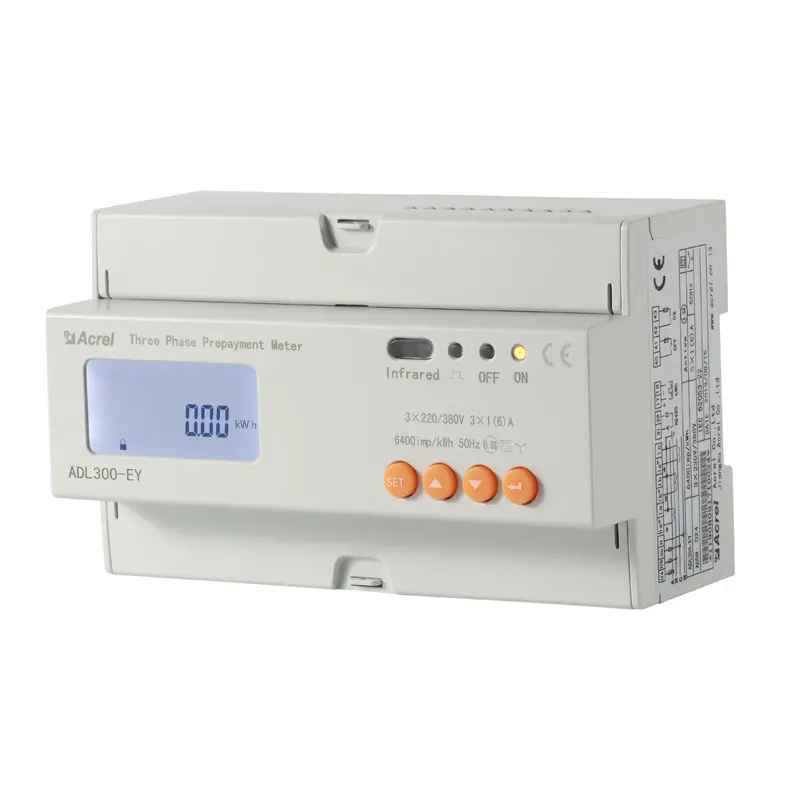

Three-phase Prepayment Energy Meter ADL300-EY
Three-phase Prepayment Energy Meter ADL300-EY
● AC 3×220/380V
● 1(6)A,10(80)A
● Prepaid mode
● Alarm for dump energy
● LCD display
● Historical records
● kWh Class 0.5S
● DIN 35 mm

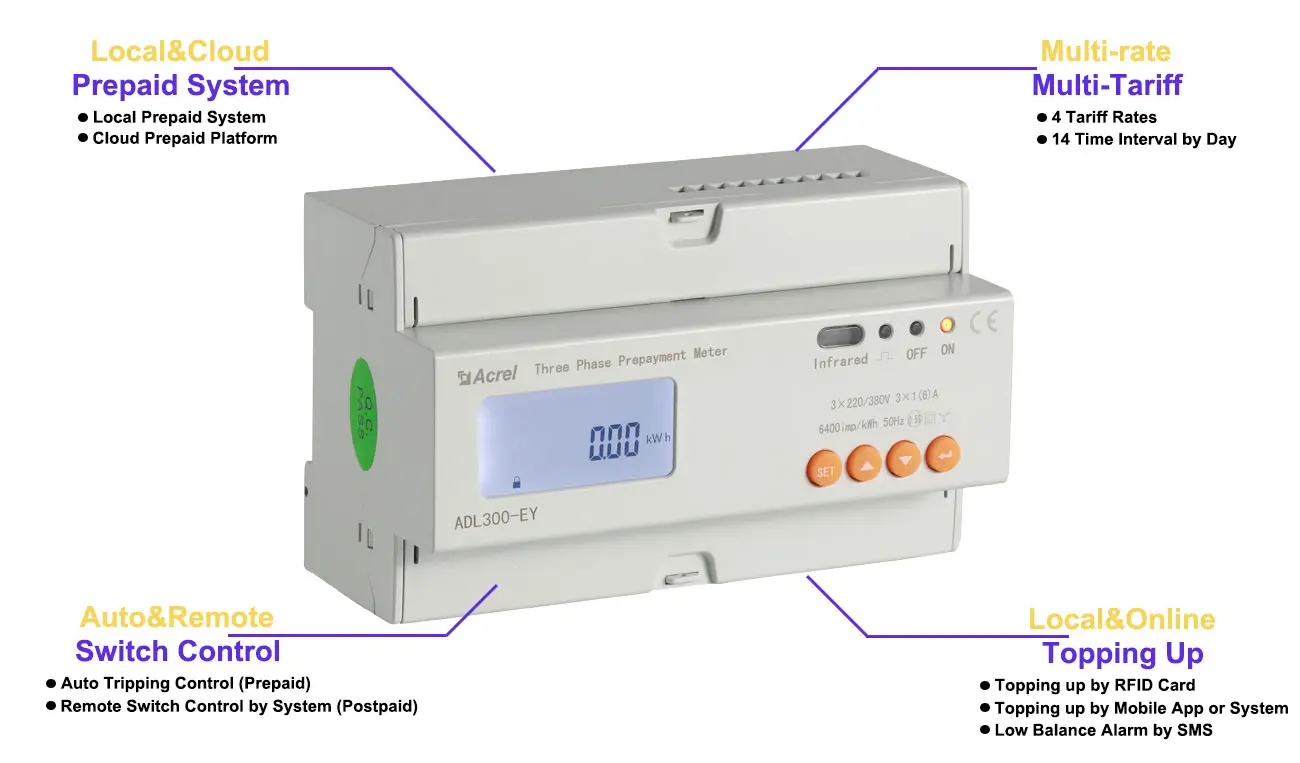

01 Function

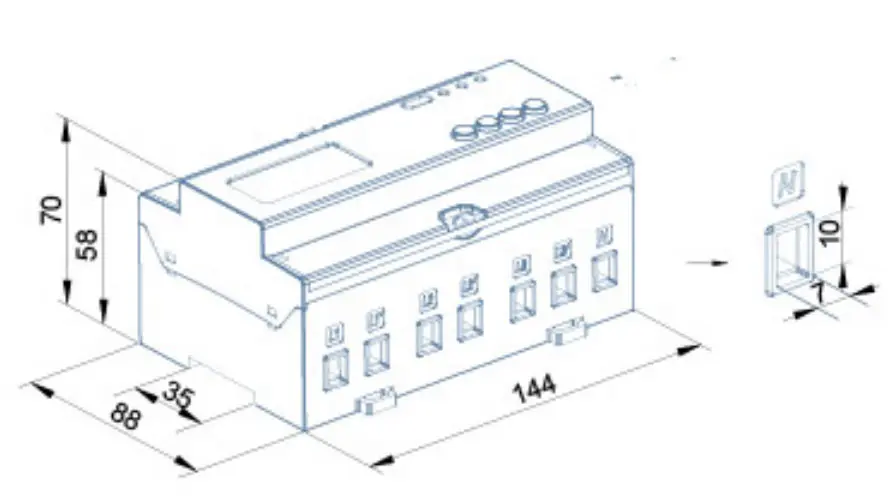

02 Dimension

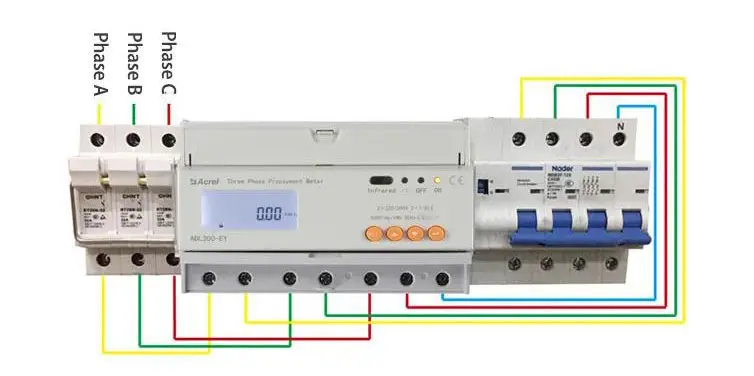

03 Wiring
04 Network
|
Specification |
ADL300-EY |
ADL300-EYZ |
ADL300-EYRF |
|
|
Voltage |
Reference voltage |
AC 3*220V/380V |
||
|
|
Consumption |
＜4VA |
||
|
|
Accuracy |
Class 1.0 |
||
|
Current |
Reference current |
1(6)A, 10(80)A |
||
|
|
Accuracy class |
Class 1.0 |
||
|
|
Consumption |
＜4VA |
||
|
Active pulse |
Pulse width：80ms±20ms Pulse constant：1600imp/kWh |
|||
|
Display |
LCD |
|||
|
Frequency |
50Hz |
|||
|
Option Function |
Communication |
RS485, Modbus-RTU compatible protocol |
||
|
|
Multi tariff energies |
4 tariff rates，14 time interval by day |
||
|
Recharge method |
Remote recharge |
RF card or Remote recharge |
RF card |
|
|
Operation Temperature |
-25 ºC~+55 ºC |
|||
|
Storage Temperature |
-40 ºC ~+70 ºC |
|||
|
Altitude |
≤ 2000m |
|||
|
Relative humidity |
≤95%RH, no condensation, without corrosive gas |
|||
