ADL10-E Single Phase Din Rail Energy Meter
ADL10-E Single Phase Din Rail Energy Meter
● AC 220V
● 10（60）A
● RS485，MODBUS-RTU
● LCD display
● kWh Class 1，Kvarh Class 2
● U、I、P、Q、S、PF、kWh、kvarh
● DIN 35mm
● IEC 62052-11:2003
62053-22:2003
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
INFORMATION
01 Function
Accuracy
kWh Class1，Kvarh Class2
Frequency
45-65Hz
Auxiliary Power Supply(self supply)
AC 220V(L-N),range:154～264V AC
Input consumption
＜10VA（single phase）
Dimension(L*W*H)
18*88*70mm
Installation
DIN35mm
Clock
Error≤0.5s/d
Starting current
0.004Ib

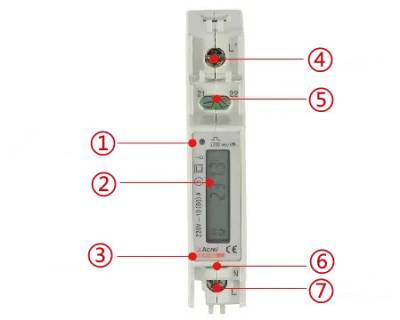

02 Front Panel
① Pulse output light
② Panel
③ Brand/Model
④ Outlet-wire
⑤ RS485
⑥ Neutral
⑦ Enter-wire
② Panel
③ Brand/Model
④ Outlet-wire
⑤ RS485
⑥ Neutral
⑦ Enter-wire

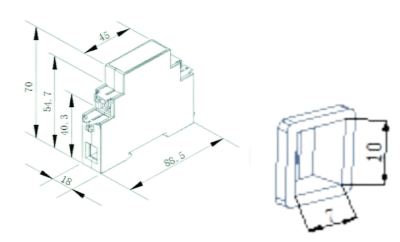

03 Dimension

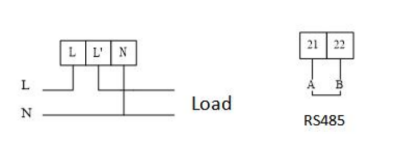

04 Network
PARAMETERS
|
voltage |
Rated voltage |
AC220V |
|
Frequency |
50Hz |
|
|
Power consumption |
<10VA |
|
|
Maximum current |
60A |
|
|
Starting current |
0.004Ib |
|
|
Consumption |
<4VA |
|
|
Measurement performance |
Accuracy |
Class 1 |
|
Measuring range |
000000.00~999999.99kWh |
|
|
Communication |
Interface |
RS485 |
|
Protocol |
MOD BUS- RTU |
