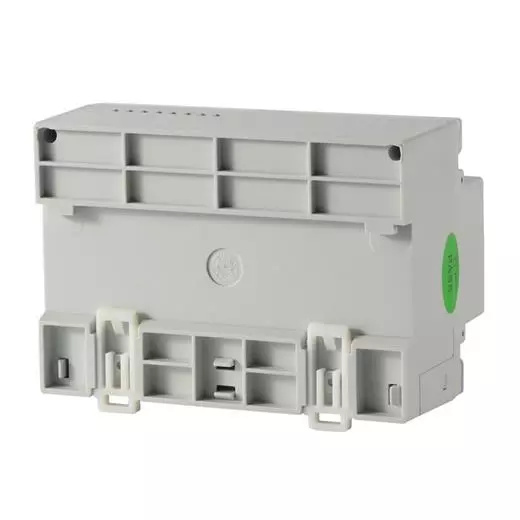

ADL3000-E 3-Phase Multi-Function Energy Meter

Home  >  Products  >  Energy Management  >  ADL3000-E 3-Phase Multi-Function Energy Meter

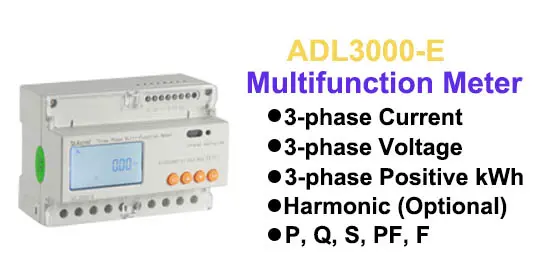

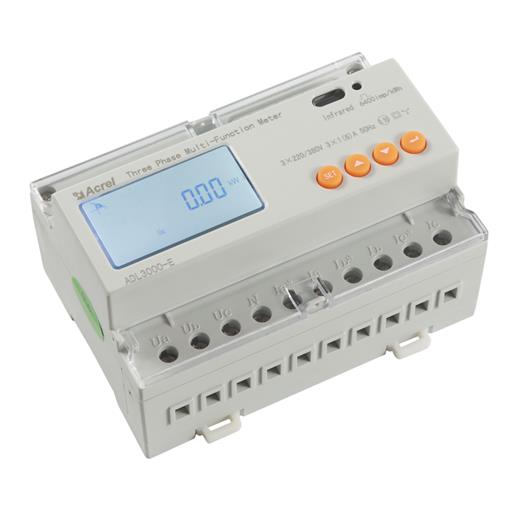

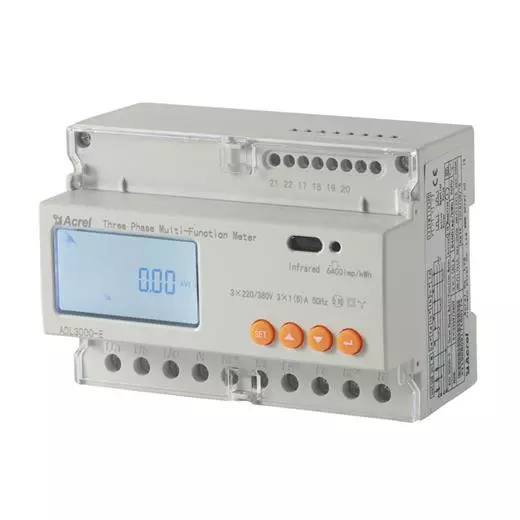

ADL3000-E 3-Phase Multi-Function Energy Meter

● IEC62053-21、IEC62053-22

● Din rail mounted

● kWh: Class 0.5S,kVarh:Class 2

● AC 3×220/380V，3×380V，3×57.7/100V，3×100V

● 3×1（6）A，3×10（80）A

● U、I、P、Q、S、PF、kWh、kvarh

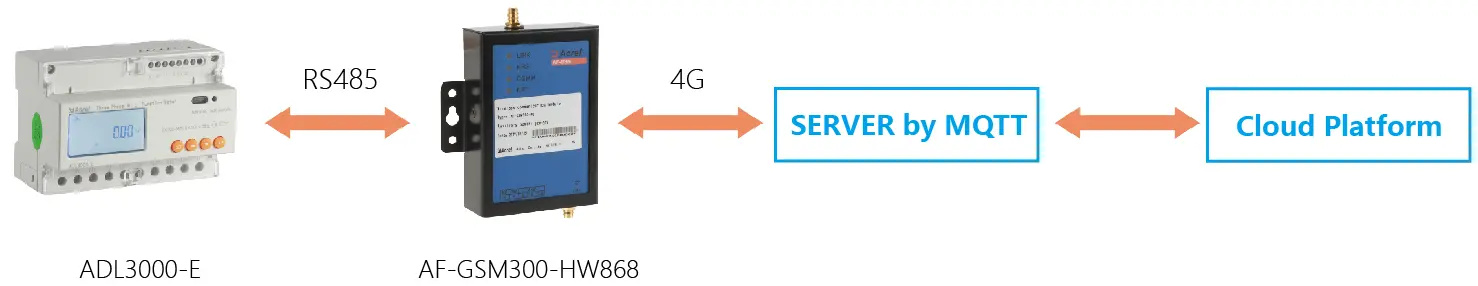

● RS485(MODBUS-RTU)

+8618761598641

jimmy.dom@email.acrel.cn

8618761598641

ADL3000-E 3-Phase Multi-Function Energy Meter
description1
Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout
INFORMATION
01 Function



◊ Communication
RS485(Modbus-RTU)

◊ Rated U and I
AC 3×100V, 3×380V, 3×57.7/100V, 3×220/380V; 3×1(6)A, 3×10(80)A

◊ Accuracy
kWh: Class 0.5S,kVarh:Class 2

◊ Frequency
50/60HZ(Optional),range: 45~65HZ

◊ Display
8 digits LCD display U, I, P, Q, PF, kWh and other energy consumption, Power measure (999999.99kWh)

◊ Pulse output

Pulse output kWh/kvarh





◊ Consumption
<10VA(Single phase)

◊ Installation

DIN 35mm




◊ Dimension(L*W*H):
126.5*88*69.5mm

◊ Switch relay:
Magnetic latching relay（ADL3000-E build-in）

◊ Clock:
Error≤0.5s/d

◊ Starting current:
Direct connect: 0.004Ib
Connect via CT: 0.001ln



Diverse Electricity Parameters Measurement

● Harmonic (2~31st voltage¤t)---Optional
● F (Frequency)
● U (3-phase Voltage)
● I (3-phase Current)
● kWh (3-phase positive Kilowatt-hours)
● kVarh (Kilovar-hours)
● P (Power)
● Q (Reactive power)
● S (Apparent power)
● PF (Power factor)

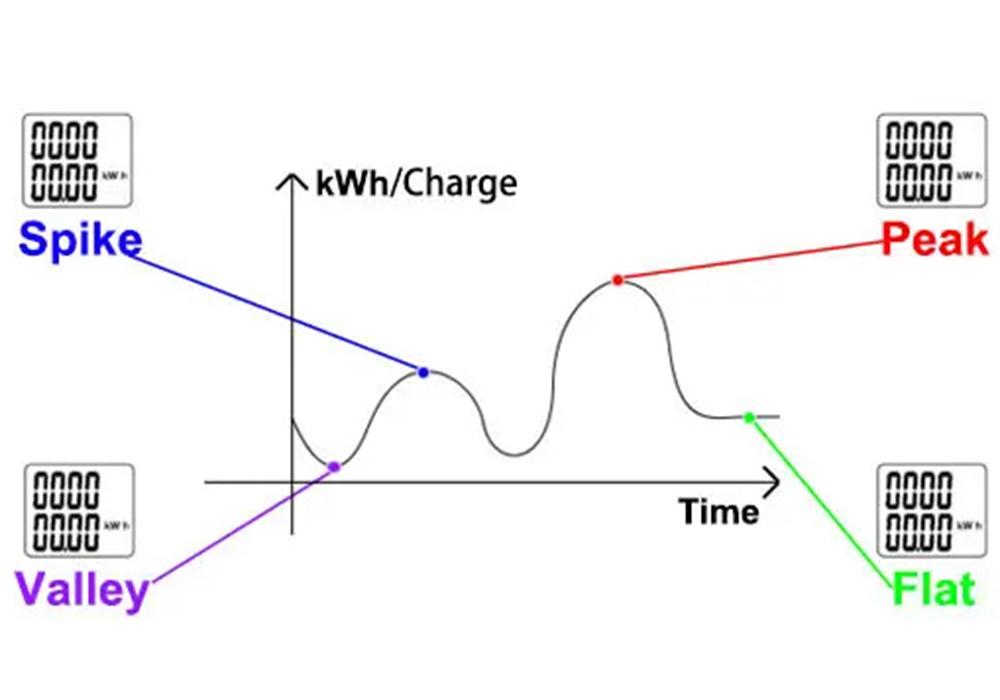

Multi-rate/Flexible Tariff

● 4 Time zone
● 4 Tariff rate (Spike, Peak, Flat, Valley)
● 2 Time period list
● 14 Time period by day
● Data Frozen (last 48 months or last 90 days)
● Max demand and occurrence time



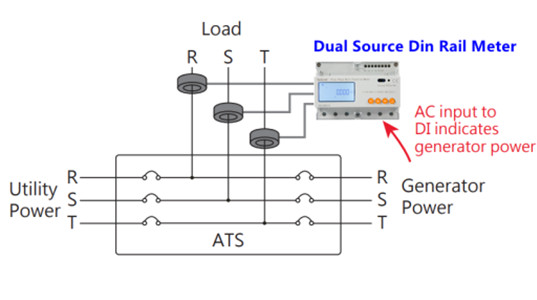

02 Wiring

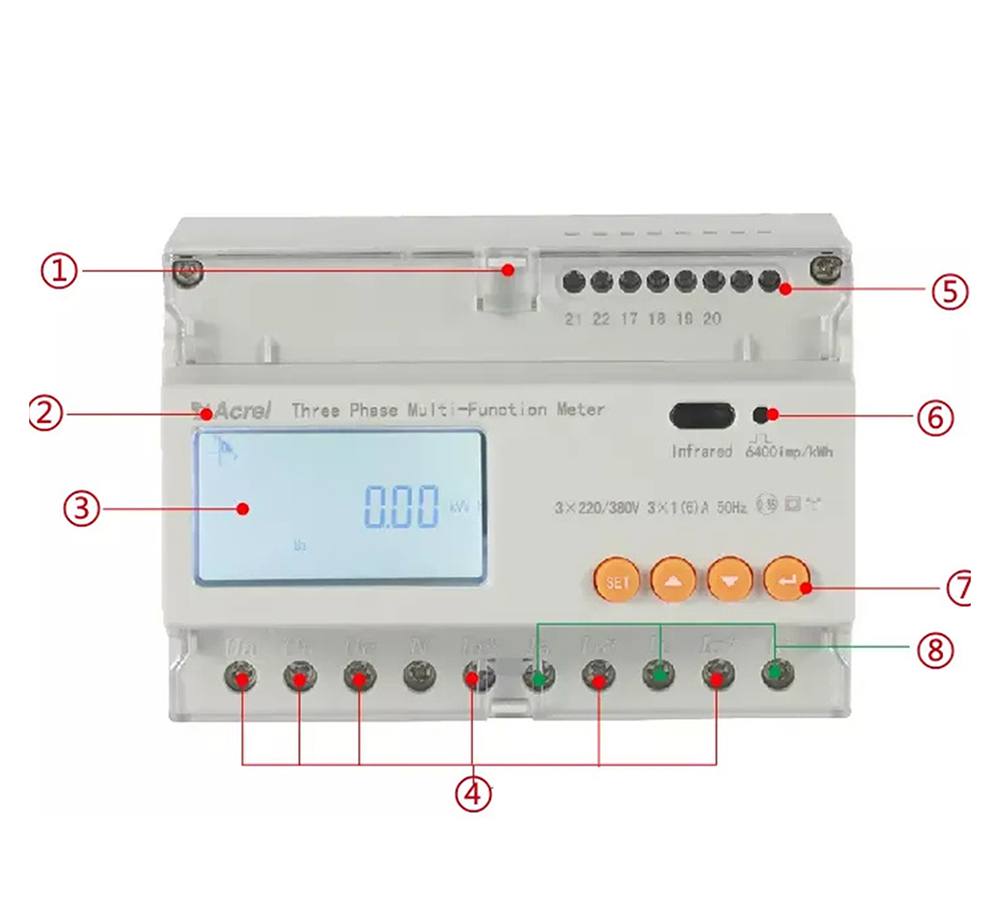

① Seal for Anti theft

② Brand

③ Panel

④ Enter-wire

⑤ Auxiliary function

⑥ Pulse output light

⑦ Button

⑧ Outlet wire

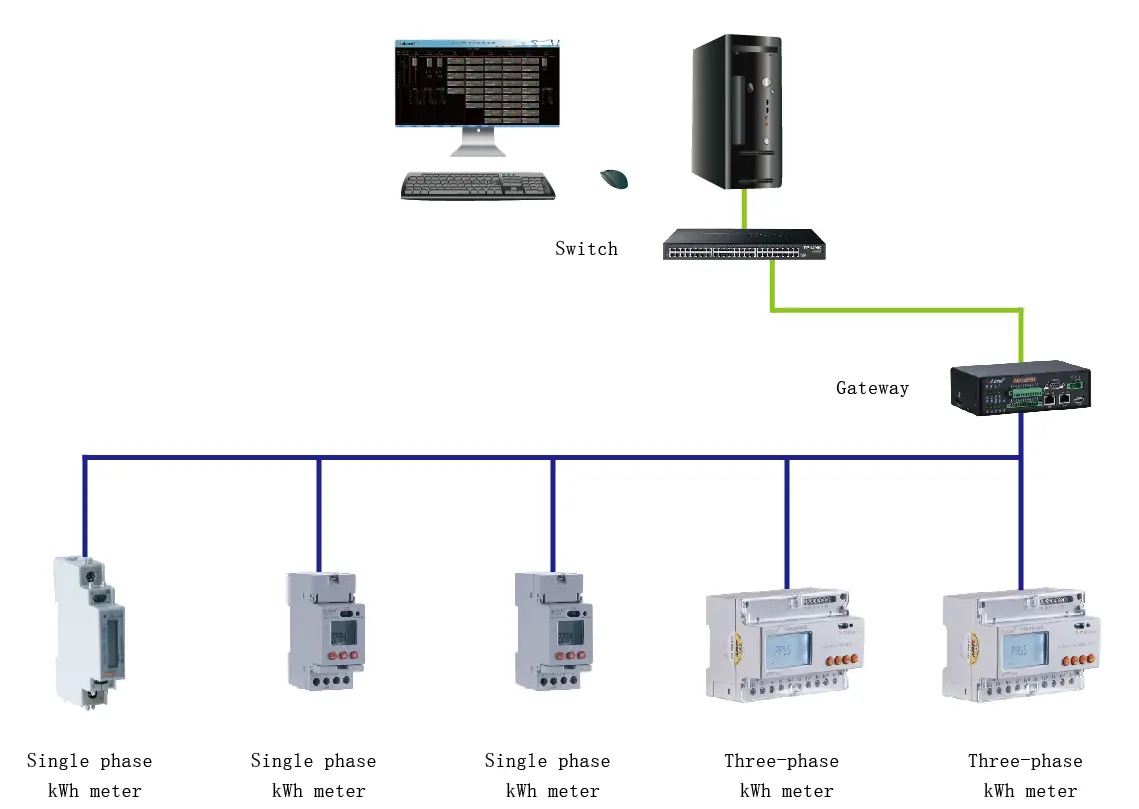

03 Network
PARAMETERS


Reference voltage

3*57.7/100V,3*220/380V,3*100V,3*380V



Reference frequency

50Hz



Consumption

<10VA(Single phase)



Current

Maximum current

6A,80A

Starting current

Direct connect:0.004lb
Connect via:0.001ln

Consumption

<1VA(Single phase rated current)

Measurement performance

Accuracy

Class 0.5

Standards compliant

IEC 62053-22:2003

Pulse

Pulse width

80+20ms

Pulse constant

400imp/kWh
6400imp/kWh

Communication

Interface

RS485

Protocol

Mod bus-RTU

Temperature range

Work

-25℃~55℃

Storage

-40℃~70℃

Humidity

≤95%(No condensation)

Altitude

<2000m
