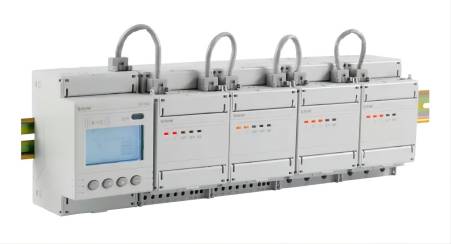

Multi-circuits Energy Meter ADF400L (1-phase&3-phase)
Multi-circuits Energy Meter ADF400L (1-phase&3-phase)
● Measure largest 36 circuits single-phase or 12 circuits three-phase
● AC 3 * 220 / 380V
● 3×1(6)A, 3×10(80)A
● RS485(MODBUS-RTU)
● Set parameters
● LCD display
● kWh Class 0.5
● DIN 35 mm
12 three-phase or 36 single-phase direct access measurement
12 three-phase mutual inductor access measurement

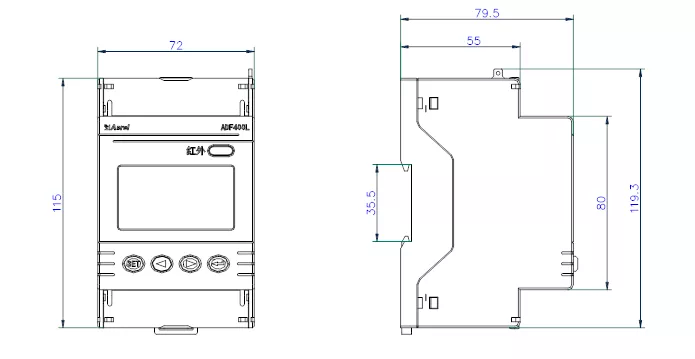

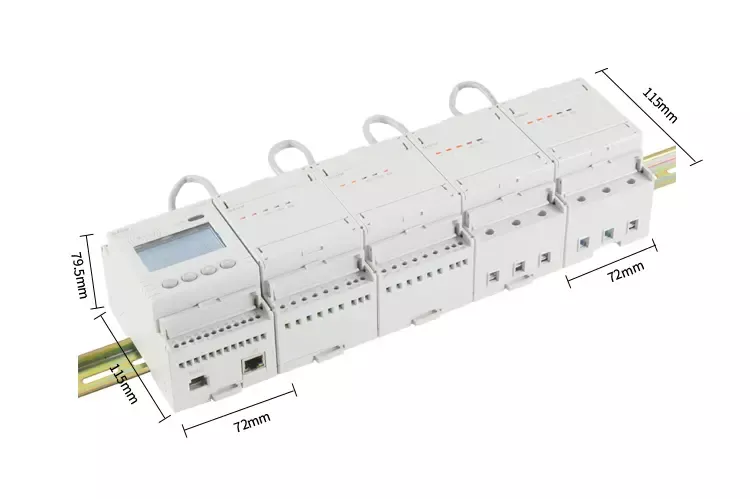

02 Dimension

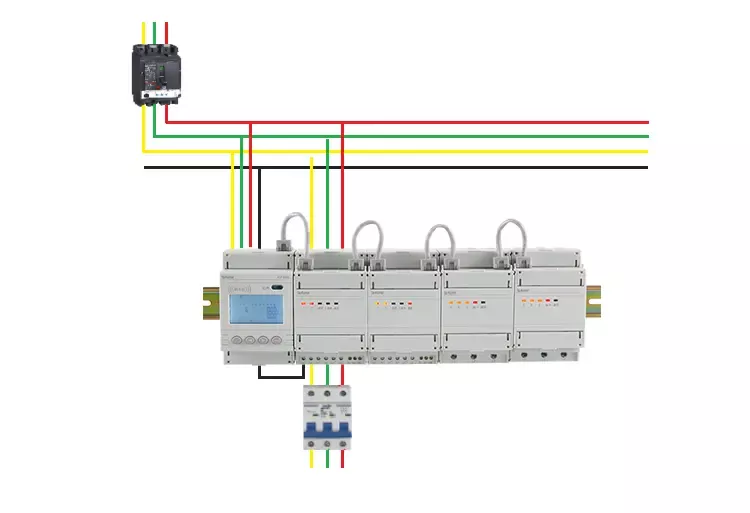

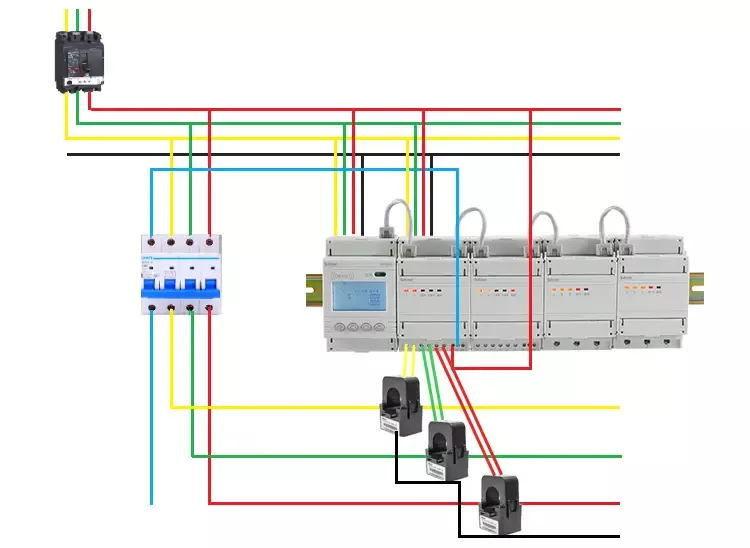

04 Typical Connection
|
ADF400L |
|
LCD |
|
Active energy(positive、negative), Reactive energy(positive、negative) |
|
Voltage、current、power factor、frequency、active power、reactive power、apparent power |
|
Total harmonic、sub harmonic（2～31） |
|
Voltage, Current unbalance |
|
Main module 2DI2DO |
|
CT connect 2DI4DO（direct connect） |
|
|
infrared |
|
RS485 MODBUS-RTU and DL/T645 |
|
|
12 month energy record |
