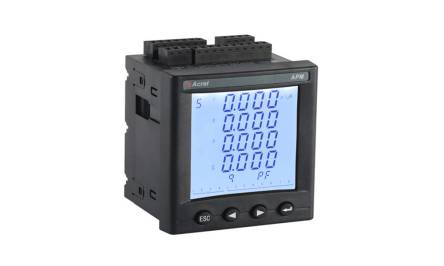

APM830 AC Multifunction RJ45 Modbus TCP Ethernet power Meter
APM830 AC Multifunction RJ45 Modbus TCP Ethernet power Meter
● True RMS Measurements
● Unbalance & Phase Angles
● True RMS Measurements
● Unbalance & Phase Angles
● Demands and Multi-Tariff energy
● Max/Min Log with Timestamp
● Total harmonics, odd、even harmonics
● Accuracy: 0.2s
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
INFORMATION
01 Function
Accuracy
Voltage、current and power: Class 0.2
Active power: Class 0.2S; Reactive power: Class 0.5
Active power: Class 0.2S; Reactive power: Class 0.5
Pulse output
Output mode: Optocoupler pulse with open collector;
Pulse constant: 4000 (5A)、8000 (1A) imp/kWh
Pulse constant: 4000 (5A)、8000 (1A) imp/kWh
Consumption
Voltage、current: Power consumption: <0.5VA;
Auxiliary power supply: Power consumption ≤15VA
Auxiliary power supply: Power consumption ≤15VA
Starting Current
0.1%
Dimension(L*W*H)
Panel size (L×W): 96*96mm
Cut-out size (L×W): 92*92mm
Cut-out size (L×W): 92*92mm
Installation
Panel mounted
Frequency
Range: 45-65Hz
Relay
3A/AC250V, 3A/DC30V
Auxiliary Power Supply
AC/DC 85V～265V or AC/DC 115～415V

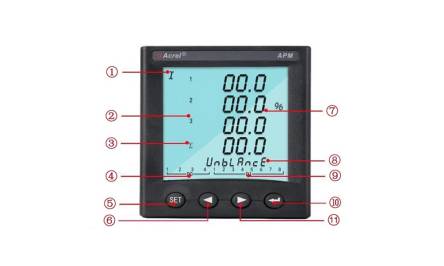

02 Front Panel
① Type of Parameters
② Load Value
③ Total Power
④ DO Status Indicator
⑤ Menu
⑥ Key Down
⑦ Data Display
⑧ Navbar
⑨ DI Status Indicator
⑩ Enter Button
⑪ Key up
② Load Value
③ Total Power
④ DO Status Indicator
⑤ Menu
⑥ Key Down
⑦ Data Display
⑧ Navbar
⑨ DI Status Indicator
⑩ Enter Button
⑪ Key up
03 Dimension

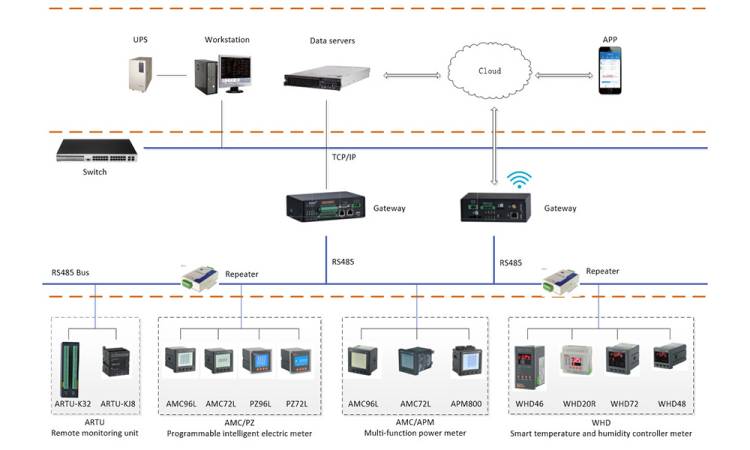

04 Network
PARAMETERS
|

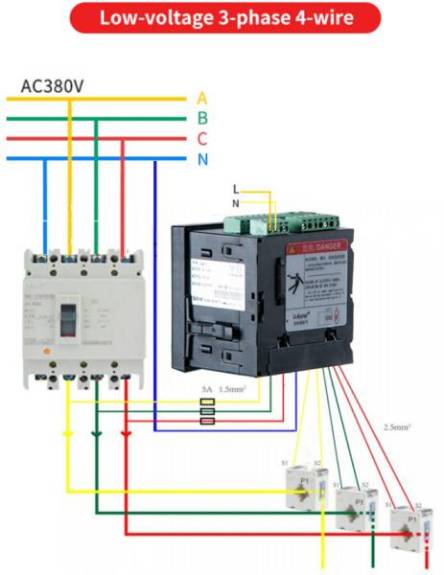

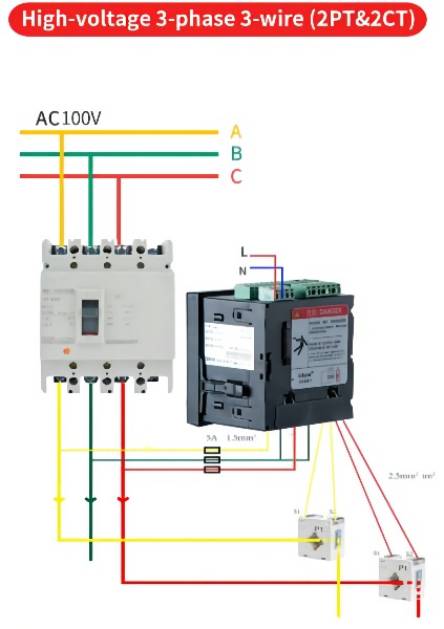

3 phase 3 wire, 3 phase 4 wire
|
|
|
50Hz
|
|
|
|
AC 100V, 110V, 400V, 690V
|
|
1.2 times rated value(continuous); 2 times rated value(1 second)
|
|
|
<0.5VA(per channel)
|
|
|
|
AC 1A, 5A
|
|
1.2 times rated value(continuous); 2 times rated value(1 second)
|
|
|
<0.5VA(per channel)
|
|
|
|
Class 0.5S(APM800, APM810)
Class 0.2S(APM801, APM830) |
|
||
|
Class 2
|
|
|
1%(2-42nd), 2%(43-63rd)
|
|
|
Passive contact inputs, built-in power supply
|
|
|
Contact type: open contact in main part, changeover contact in module
Pulse capacity: 3A/AC250V, 3A/DC30V
|
|
|
Output mode: Optocoupler pulse with open collector
Pulse constant: 4000(5A), 8000(1A) imp/kWh |
|
|
DC0-20mA, 4-20mA, 0-5V, 1-5V output, accuracy class 0.5%,
Load resistance≤500Ω
|
|
|
DC0-20mA, 4-20mA, 0-5V, 1-5V input, accuracy class 0.5%,
|
|
|
Standard capacity: 4G, TF card up to 32G capacity
|
|
|
RS485(Modbus-RTU), Profibus(Profibus-DP),
Ethernet(Modbus-TCP, HTTP, DHCP)
|
|
|
AC/DC 85~265V or AC/DC 115~415V
|
|
|
IEC 61000 standard(Level 4)
|
|
|
|
-20~65℃
|
|
-20~70℃
|
|
|
≤95%(No condensation)
|
|
|
≤2500m
|
|
