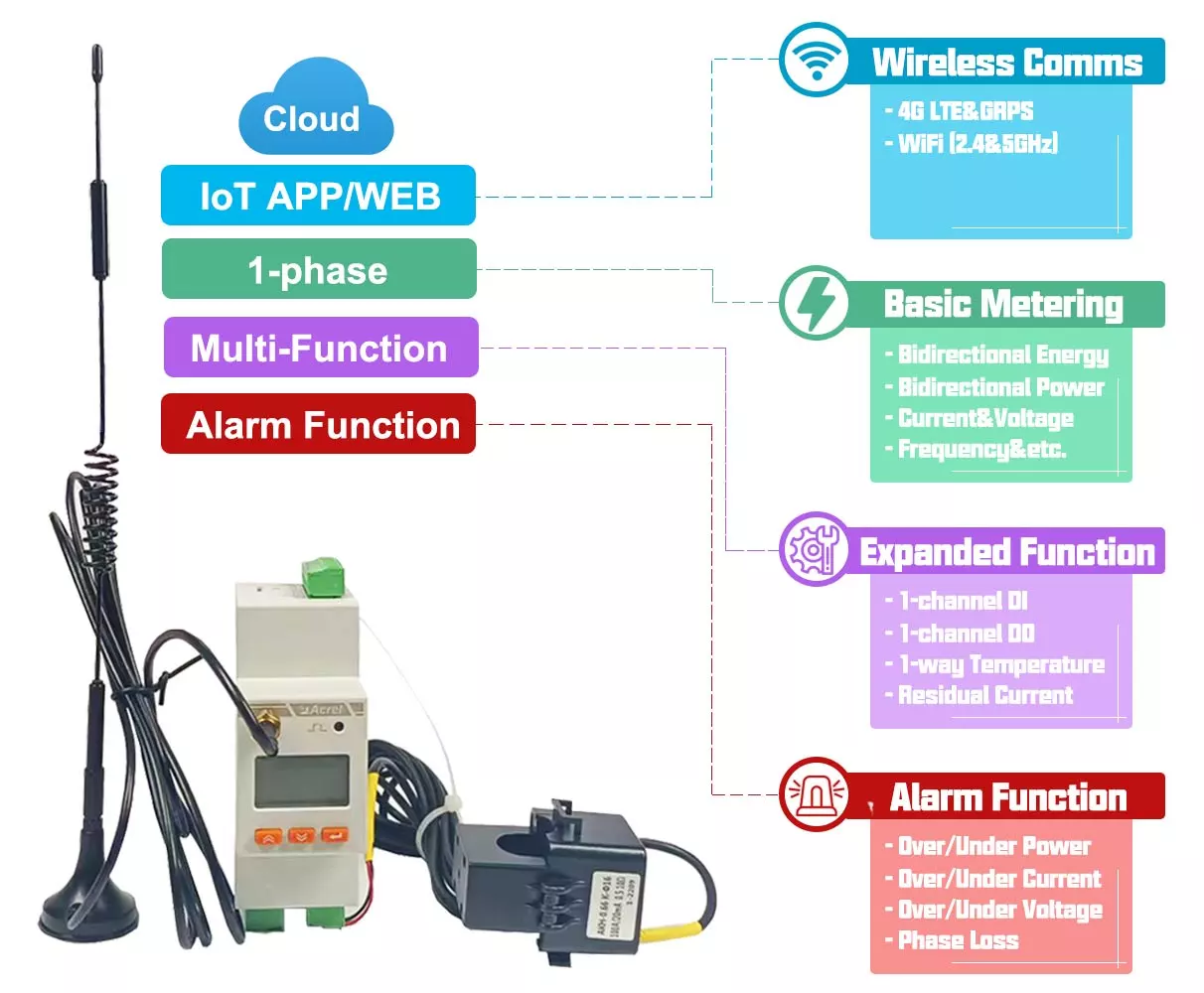

ADW310 IoT 1-phase Wireless Smart Energy Meter
ADW310 IoT 1-phase Wireless Smart Energy Meter

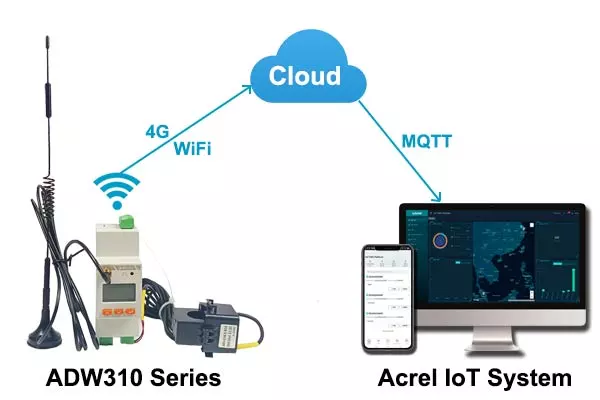

● Paired with Acrel IoT Energy Monitoring System
● PC Access via IoT EMS WEB
● Mobile Phone Access via IoT EMS APP
● 4G Wireless Communication (Global)
● WiFi Wiress Communication (2.4GHz)
● Support MQTT, MODBUS-TCP protocol
● Support standard RS485 interface (MODBUS-RTU)

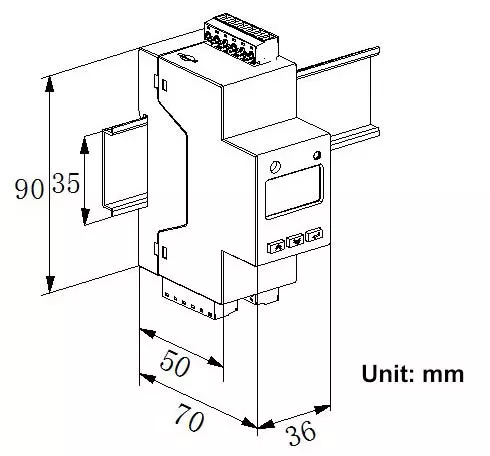

03 Outline Dimension
| Parameter | Description&Value | |
|
Voltage
Input
|
Rated Voltage |
220~264Vac L-N |
| Reference Frequency | 45~65Hz | |
| Power Consumption | ＜0.5VA (each Phase) | |
|
Current
Input
|
Rated Current | 20(100)A AC |
| Starting Current | 1% Ib (Class 0.5); 4% Ib(Class 1) | |
| Power Consumption | ＜1VA (each Phase) | |
|
Phase
Wiring
|
1P2W | 1-phase 2-wire |
|
Measurement
Performance
|
Standard |
GB/T17215.322-2008，GB/T17215.321-2008 |
| kWh Accuracy | Class 1 | |
|
Pulse
|
Width of Pulse | 80±20ms |
| Pulse Constant | 1600imp/kWh; | |
