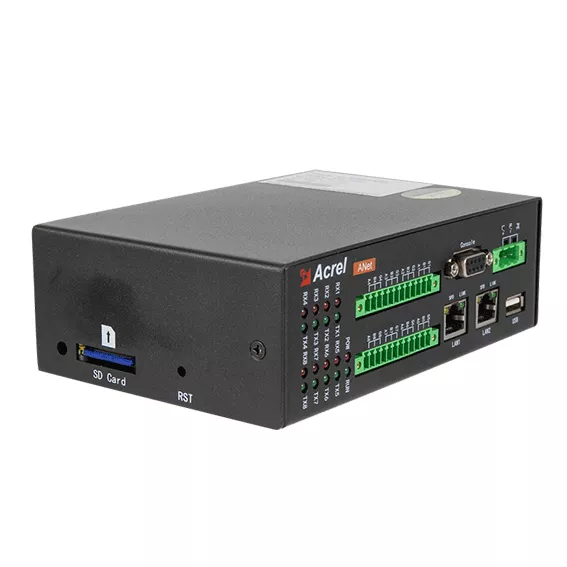

ANet-1E2S1-4G Smart IoT Gateway
ANet-1E2S1-4G Smart IoT Gateway
● Double wide voltage (DC / AC 85V ~ 265V) reverse connection protection
● Support 2G/3G/4G
● Support local and remote configuration maintenance and real-time data monitoring
● Max.64 device data collection,support MODBUS-RTU or MODBUS-TCP device
● Support breakpoint continuation,Xml, Json for data transmit
● Support standard 8GB SD card (Max. 32GB)
● Multiple alarm setting for each device

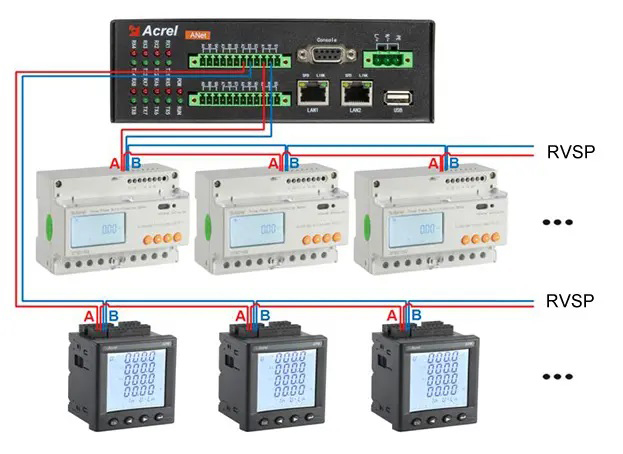

02 Wiring

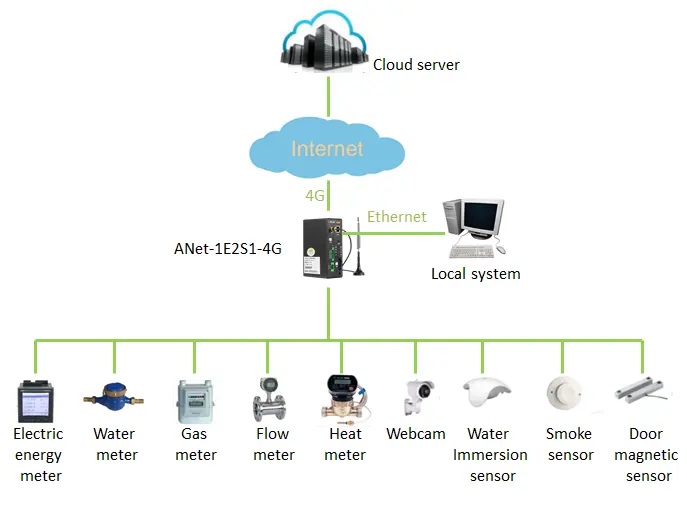

03 Network
|

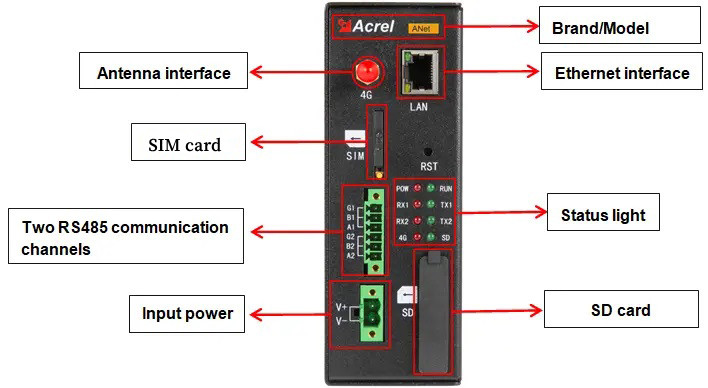

Hardware |
|
| Technical Data |
Index |
| Processing Element |
ARM32 digit Free scale ARM9 i.MX2xx 454MHz |
| Inner Board Memory |
64MB DDR2 internal memory + 128MB NAND Flash + 8G SD Card Electronic hard disk |
| Serial Interface |
Two channels coupling isolation RS485 |
| Ethernet Interface |
1 channel 10/100 self-adaption capacity |
CONTACT US
Contact US
Product Information
Quantity
Unit
Piece
Support order samples, customization, wholesale direct, and complete payment. If the product you look for does not have corresponding customized content, pls fill out the form below to contact us, and we will reply ASAP.
